High Frequency 100Khz Ultrasound Spraying Technology For Drug Elution Balloon Dilation Catheter

MOQ:	1 UNIT
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FS1005

Production Name:

Balloon Catheter Ultrasonic Precision Spraying Machine

Frequency:

100Khz (120khz Or 150khz For Select)

Max Power:

Continuous Spraying Volume Max:

0.01-l/min

Effective Spraying Width:

1-5mm

Spray Uniformity:

Solution Viscosity:

≤10cps

Input Voltage:

220V±10%/50-60Hz

Highlight:

High Frequency Ultrasound Spraying Technology

100Khz Ultrasound Spraying Technology

Dilation Catheter Ultrasound Spraying Technology

Product Description

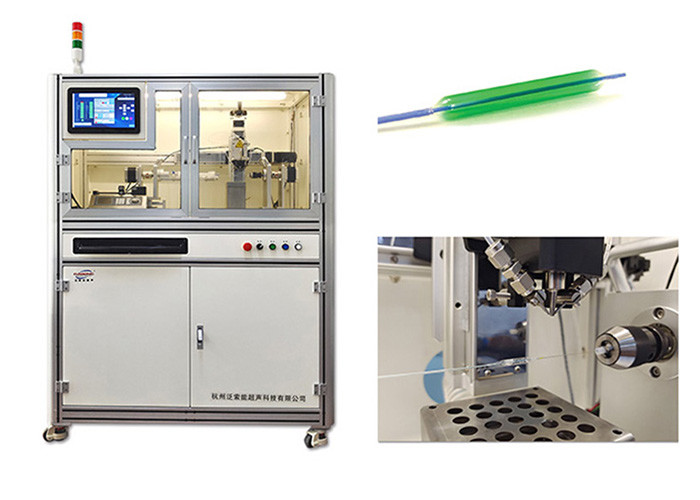

High Frequency 100Khz Ultrasound Spraying Technology For Drug Elution Balloon Dilation Catheter

Description:

Ultrasound Spraying Technology for Drug Elution Balloon Dilation Catheter is used to spray anti restenosis polymers and plasticizers onto implantable balloon catheters, producing a thinner, more uniform, and more effective coating. Some balloon catheters require the use of an automatic inflation device to inflate the balloon catheter before coating.

Ultrasound Spraying Technology for Drug Elution Balloon Dilation Catheter is the main body of the entire treatment system. Atherosclerosis is a very popular disease in China, especially for middle-aged and elderly people, coronary artery balloon angioplasty is an effective solution. Ultrasonic atomization technology has been proven to be successful.

Parameters:

Product Type	Laboratory desktop FS620	Pilot type vertical FS650	Online production type FS680	FS1005
Spray nozzle operating frequency	20-200KHz			100KHz (120KHz或150KHz for select)
Nozzle power	10-100W			2~ 10W
Continuous spraying volume max	20-1200ml/h/pcs,Scalable			0.01-l/min
Effective spraying width	2-260mm/pcs,Scalable			1-5mm
Spray uniformity	<5%			<5%
Solution conversion rate	≥95%			≥95%
Dry film thickness	20nm-100μm			20nm-1μm
Solution viscosity	≤50cps			≤10cps
temperature range	1-60℃			1-60℃
Atomized particles (median value)	10-45μm (Distilled water), determined by the frequency of the nozzle			10-25μm(Distilled water), determined by the frequency of the nozzle
Diversion pressure max	≤0.15MPA			≤0.05MPa
input voltage	220V±10%/50-60Hz			220V±10%/50-60Hz

Advantages :

1. A highly uniform thin film coating on the heart or other balloon catheter can evenly transfer drugs at the lesion site.

Compared to immersion coating, it saves materials.

3. Reliable, repeatable, and controllable balloon catheter coating.

4. Able to atomize common chemical compositions, including hydrophilic carriers and plasticizers, to increase the flexibility of coatings.

5. A durable coating without cracking or peeling ensures correct delivery of drugs at blocked areas.

6. The target area (stripes) can be sprayed on the surface of the balloon instead of covering the entire balloon surface.

7. The medical grade gasket on the balloon of the catheter ensures that it will not damage the catheter component or coil the catheter.

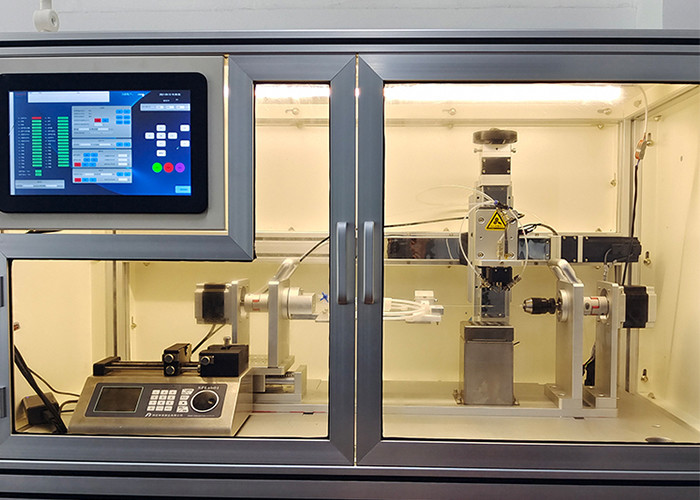

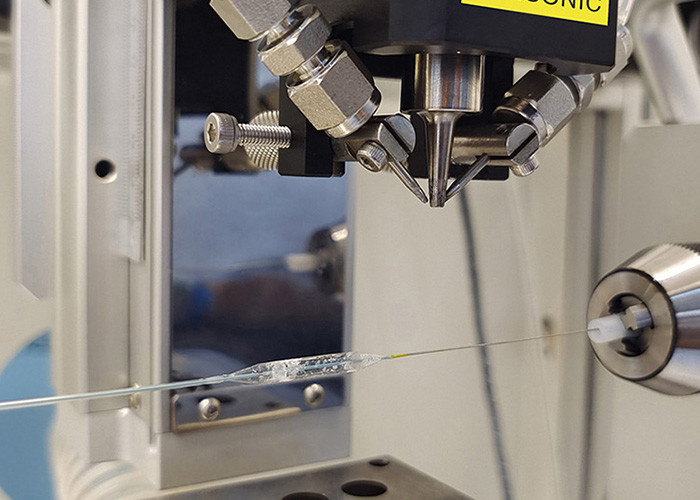

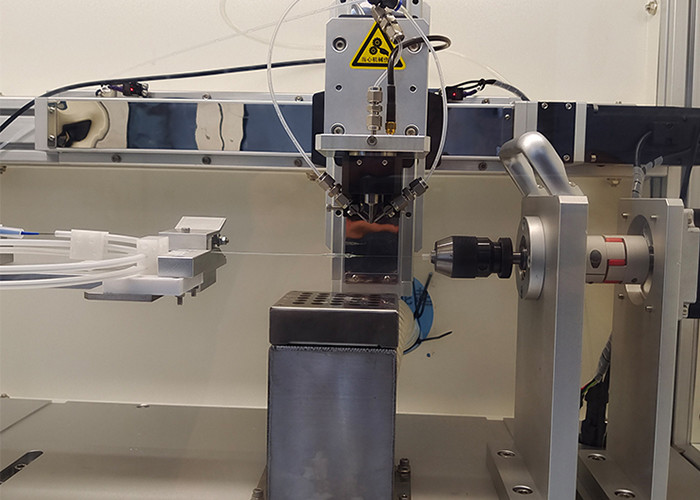

High Frequency 100Khz Ultrasound Spraying Technology For Drug Elution Balloon Dilation Catheter

High Frequency 100Khz Ultrasound Spraying Technology For Drug Elution Balloon Dilation Catheter 0
