| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS1006 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Precision Spraying Machine | Frequency: | 120Khz |
|---|---|---|---|
| Max Power: | 1-15w | Continuous Spraying Volume Max: | 0.01-1ml/min |
| Effective Spraying Width: | 0.5-2mm | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤15cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Various Frequency Spraying Coated System,Peripheral Stent Spraying Coated System,Various Frequency Ultrasonic Spray Coating Machine |
||

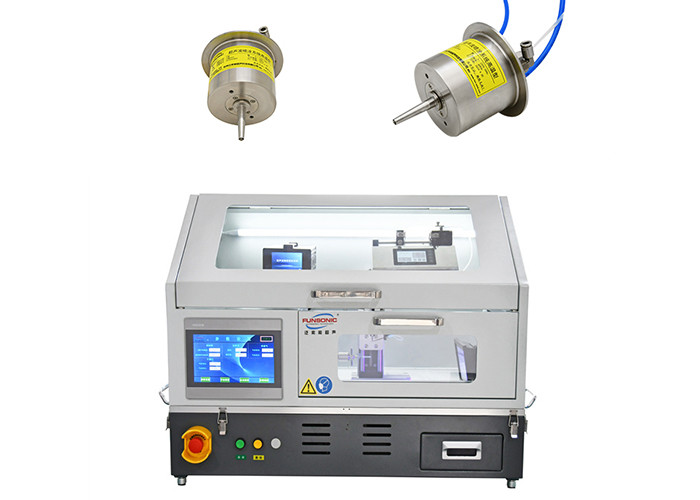

Ultrasonic Precision Coronary Stent And Peripheral Stent Spraying Coated System Various Frequency for Option
Description:
Ultrasonic stent spraying equipment uses high-frequency vibration of ultrasound to disperse water and liquid, forming tiny particles ranging from a few micrometers to over 100 micrometers in size. It has the characteristics of supporting multiple series and types of stents, high drug utilization rate, controllable drug dosage, and uniform stent film layer.

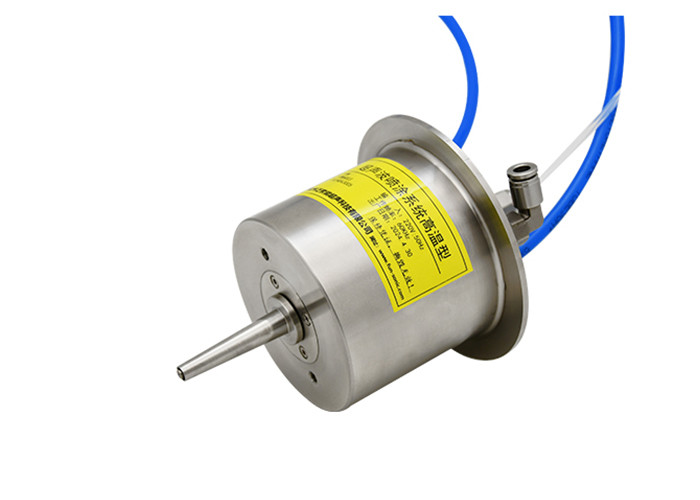

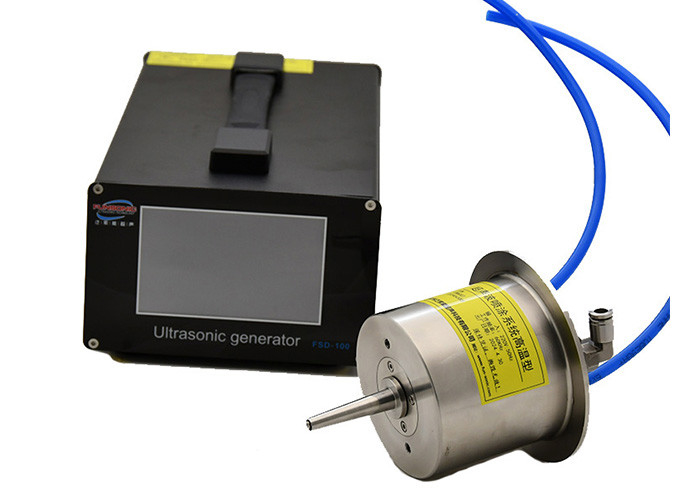

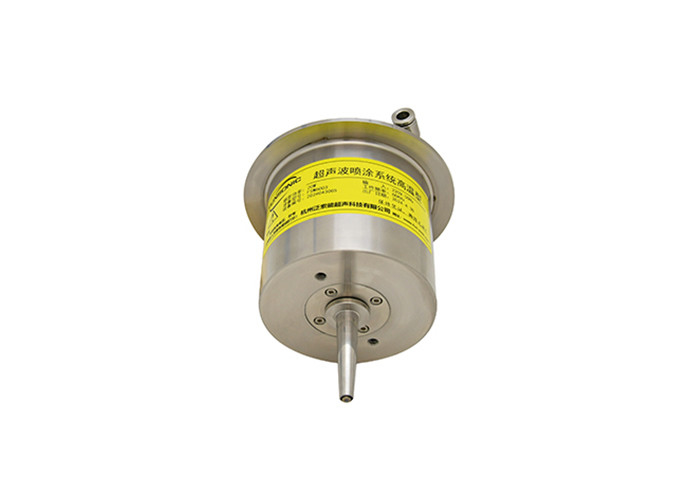

Unlike the traditional spray head, which relies on pressure and high-speed movement to crush liquid into small particles, the ultrasonic spray head uses lower ultrasonic vibration energy to atomize liquid. The liquid can be delivered to the spray head through its own gravity or low-pressure liquid pump to achieve continuous or intermittent atomization.
Parameters:
| Product Type | Stent Ultrasonic Coating System FS1006 |
| Spray Nozzle Operating Frequency | 120KHz (Optional 100150Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-5mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤10cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-25μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | X-axis servo motor+rotating R-axis, action can be independently programmed |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
| Operation | Clamp at both ends, supporting the lifting and clamping of excess conduit coils |
Features:
1. According to different spraying applications, there are wide width spraying suitable for large-area film spraying, scattering spraying suitable for large-area spraying, gathering spraying suitable for large-area spraying, long nozzle spraying suitable for probing spraying, line spraying suitable for fine line spraying, vortex spraying suitable for flat object spraying, etc.
2. Currently, commonly used frequencies include 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 100kHz, 120kHz, 150kHz, and 200kHz
3. Fine atomized particles, even atomized particles, can achieve intermittent or continuous spray
4. It can achieve high-precision and highly controllable spraying, reducing raw material consumption
Ultrasonic Precision Coronary Stent And Peripheral Stent Spraying Coated System Various Frequency for Option
