Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSD-2012-GL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 20Khz Experimental Liquid Ultrasonic Processing | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 1200w | Input Voltage: | 220V±10%，50/60Hz |
| Emitter Materials: | Titanium Alloy | Emitter Type: | Focus Type |
| Durable Temperature: | 0-80℃ | Application: | Ultrasonic Extraction, Dispersion, Emulsification, Defoaming, Crushing, Stirring |
| Highlight: | 1200w Ultrasonic Sonochemical Cavitation Processor,Amplitude Ultrasonic Sonochemical Cavitation Processor,High Frequency Ultrasonic Sonochemical Cavitation Processor |
||

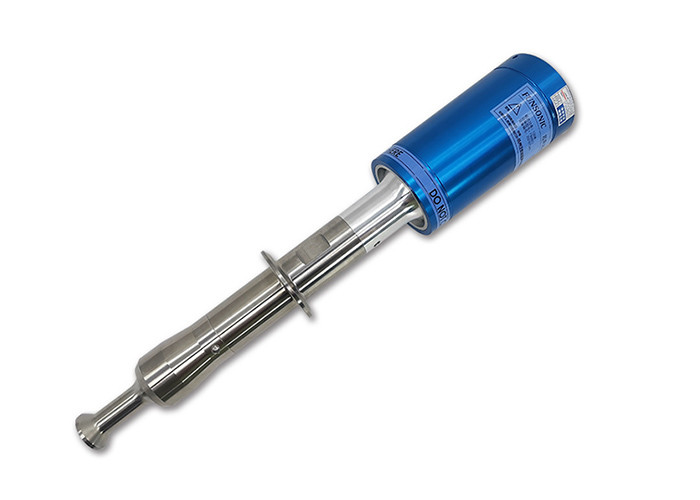

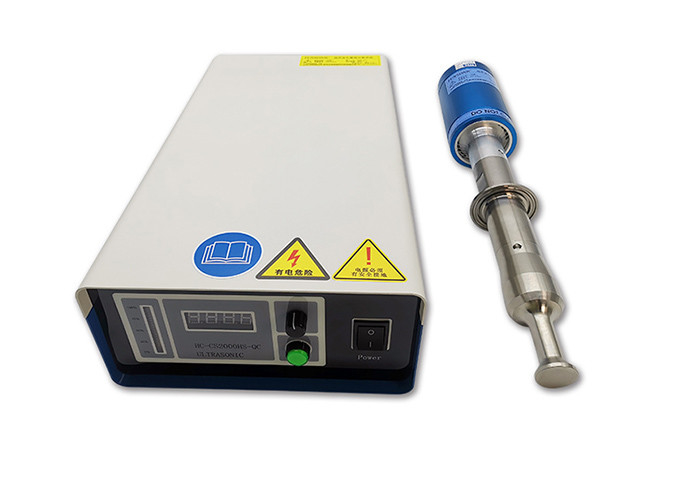

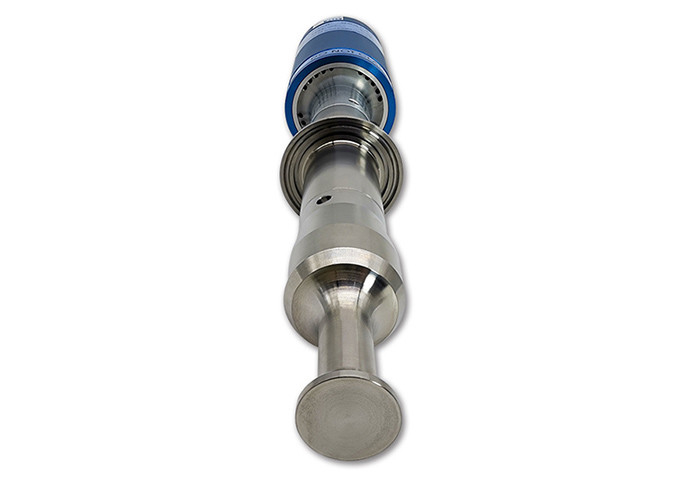

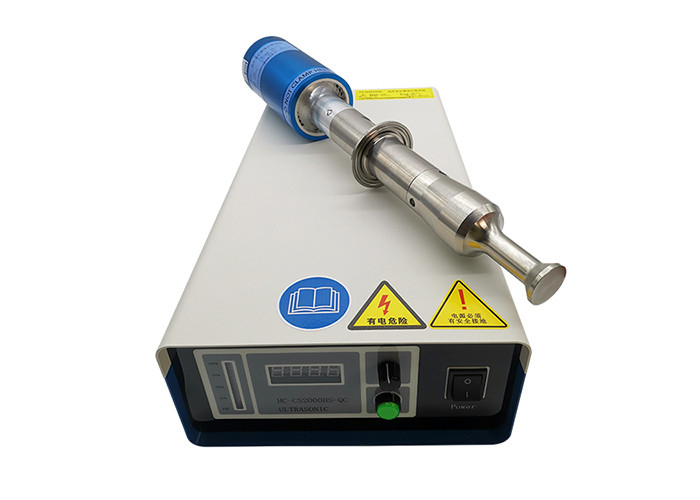

High Frequency Amplitude Ultrasonic Sonochemical Cavitation Processor 1200w
Description:
High frequency amplitude ultrasonic sonochemical cavitation processor is caused by cavitation phenomenon. Ultrasound passing through the liquid continuously compresses and expands it. High intensity ultrasound provides the energy required to disperse the liquid phase. When the maximum pressure is reached, liquid rupture occurs at points with weak cohesion. After this rupture, overpressure appeared at the point of rupture and some cavities were found to exist. In these voids, the gas dissolved in the liquid explodes in the form of bubbles after a short period of time.
The severe bubble rupture during High frequency amplitude ultrasonic sonochemical cavitation processor process can lead to extreme local temperature, heating/cooling rate, and pressure, thereby triggering many sonochemical processes, including ester exchange (used for producing biodiesel), pollutant degradation, and pasteurization, crude oil desulfurization, and so on. An ultrasonic processor with high-frequency amplitude can perform any scale of sonochemical treatment.
Parameters:
| Model | FSD-2012-GL |
| Name | 20Khz Experimental Ultrasonic Extraction Equipment |
| Frequency | 20Khz |
| Power | 1200w |
| Input Voltage | 220V±10%,50/60Hz |
| Emitter Materials | Titanium Alloy |
| Emitter Type | Focus Type |
| Durable Temperature | 0-80℃ |
| Application | Ultrasonic extraction, dispersion, emulsification, defoaming, crushing, stirring |
Advantages:
1. Compared with conventional methods, ultrasonic technology has higher efficiency and shorter time.
2. Compared with other processes, ultrasonic technology does not require high temperature or high pressure, has good safety, is easy to operate, and is easy to maintain.
3. It has broad-spectrum and wide applicability, and the vast majority of liquids can be treated with ultrasound.
4. In most cases, ultrasonic equipment has fewer operating steps, a simple process, is not easy to cause pollution, and has lower temperatures, making it suitable for the operation of thermal sensitive target components.
5. Compared with conventional methods, ultrasonic equipment is simple, has low production costs, and significant comprehensive economic benefits.
6. Compared with some traditional methods, ultrasonic technology is an effective method that is easier to operate and maintain.
High Frequency Amplitude Ultrasonic Sonochemical Cavitation Processor 1200w
