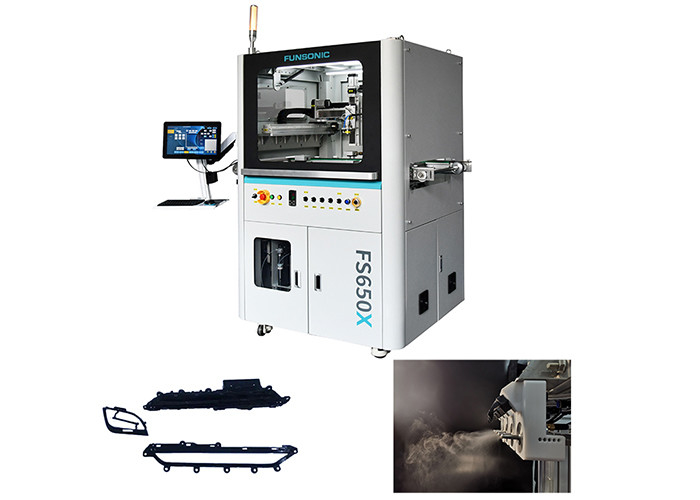

Console Panel Plastic Molding Surface Ultrasonic Coating

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS650X
Production Name:
Production Ultrasonic Spraying System
Frequency:
20-200khz For Selection
Max Power:
100w
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-260mm/pcs，Scalable
Spray Uniformity:
<5%
Solution Viscosity:
≤50cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

console panel ultrasonic coating

,

plastic molding surface ultrasonic coating

Product Description

Console Panel Plastic Molding Surface Ultrasonic Coating





Description:



Ultrasonic coating on the plastic molded surface of the console panel is suitable for applications such as protective hard coatings and functional coating films in automotive manufacturing. Replace wasteful immersion and pressure spray gun processes with unobstructed ultrasonic spraying. Provide excellent uniform flux coverage while significantly reducing flux consumption, lowering maintenance requirements, and minimizing overspray.
The plastic molded surface ultrasonic coating of the console panel is an advanced surface treatment technology used for components such as instrument panels and control panels to enhance the performance and appearance of the panel.





Parameters:



Product Type

Laboratory desktop

FS620

Pilot type vertical

FS650

Online production type

FS680

 FS1005
Spray nozzle operating frequency 20-200KHz 100KHz (120KHz或150KHz for select)
Nozzle power 10-100W 2~ 10W
Continuous spraying volume max 20-1200ml/h/pcs,Scalable 0.01-l/min
Effective spraying width 2-260mm/pcs,Scalable 1-5mm
Spray uniformity <5% <5%
Solution conversion rate ≥95% ≥95%
Dry film thickness 20nm-100μm 20nm-1μm
Solution viscosity ≤50cps ≤10cps
temperature range 1-60℃ 1-60℃
Atomized particles (median value) 10-45μm (Distilled water), determined by the frequency of the nozzle 10-25μm(Distilled water), determined by the frequency of the nozzle
Diversion pressure max ≤0.15MPA ≤0.05MPa
input voltage 220V±10%/50-60Hz 220V±10%/50-60Hz





Applications :



1. Wear resistance: Ultrasonic coating can improve surface wear resistance and extend service life, especially in high friction environments.
2. Anti slip performance: The coating can increase surface friction, provide better anti slip effect, and ensure user safety.
3. Aesthetics: Ultrasonic coating can improve the appearance, provide a smooth and glossy surface, and enhance the visual appeal of the product.
4. Anti fouling: Coating surfaces are usually easier to clean, reducing the adhesion of dirt and grease.
5. Corrosion resistance: enhances the surface's resistance to chemicals and environmental factors, suitable for fields such as automobiles and electronic products.
6. Electrical insulation: Some ultrasonic coatings can provide good electrical insulation performance, suitable for the use of electrical equipment.
7. Acoustic performance: In some applications, coatings can improve acoustic properties, reduce noise and vibration.





Console Panel Plastic Molding Surface Ultrasonic Coating



Console Panel Plastic Molding Surface Ultrasonic Coating 0Console Panel Plastic Molding Surface Ultrasonic Coating 1
