Ultrasonic Precision Coating Technology For Electronic PCB Printed Circuit Board

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS150
Production Name:
Ultrasonic Precision Spray Coated Machine
Frequency:
20-200Khz For Optional
Power:
1-15w
Automized Particle Size Range:
15-20μm
Spray Flow:
0.01-50ml/min
Liquid Viscosity:
<30cps
Particle Size:
<8μm
Application:
Suitable For Qualitative Experiments
Highlight:

Ultrasonic Precision Coating Technology

,

Ultrasonic Spraying PCB Surface Coating

,

PCB Ultrasonic Spray Coating Machine

Product Description

Ultrasonic Precision Coating Technology For Electronic PCB Printed Circuit Board





Description:



Electronic PCB (printed circuit board) protection ultrasonic precision coating technology is an advanced ultrasonic coating process that uses high-frequency ultrasonic vibration to fully atomize moisture-proof coatings, insulation coatings, or anti-corrosion coatings, thereby evenly coating them on the surface of the PCB, effectively protecting the functionality of the circuit board and extending its service life.
Ultrasonic technology can enhance the adhesion between coatings and PCB surfaces, providing higher protection performance for electronic PCB boards and adapting to the constantly changing demands of electronic products.





Parameters:



Product Type Ultrasonic Precision Spraying Coated Machine Laboratory desktop Type FS150
Spray Nozzle Operating Frequency 20-200KHz
Nozzle Power 1-15W
Continuous Spraying Volume Max 0.01-50ml/min
Effective Spraying Width 2-100mm
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Dry Film Thickness 20nm-100μm
Solution Viscosity ≤30cps
Temperature Range 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.10MPA
Input Voltage 220V±10%/50-60Hz
Exercise Mode X. Y-axis and Z-axis linear track motion module, performing up and down/front and back/left and right movements
Motion controller Operating software system, parameter settings
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump
Ultrasonic Dispersion System (Optional) 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 200W,10A





Parameters Adjusting :



Improve coating splash phenomenon by adjusting the following parameters:
1. Reduce ultrasonic power: Reduce the power of ultrasonic waves to lower the intensity of spraying
2. Reduce coating speed: Slowing down the coating speed can allow more time for the coating to evenly spread on the substrate, reducing splashing.
3. Extend pulse time: Increasing the pulse time can allow the coating to atomize more fully, rather than spraying out instantly
4. Reduce the frequency: use a lower ultrasonic frequency to change the spray mode to make it more stable
5. Increase viscosity: If the coating is too thin, the viscosity of the coating can be appropriately increased (for example, by adding thickeners)
6. Optimize nozzle design or replace nozzle: use a more reasonable nozzle design, or adjust the spray angle and distance of the nozzle

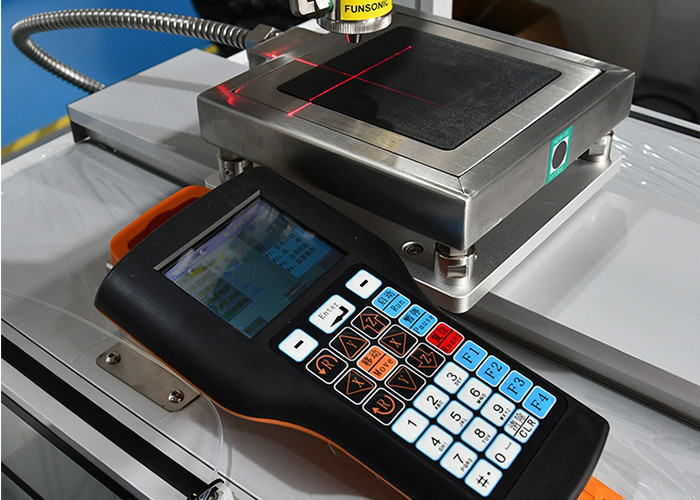

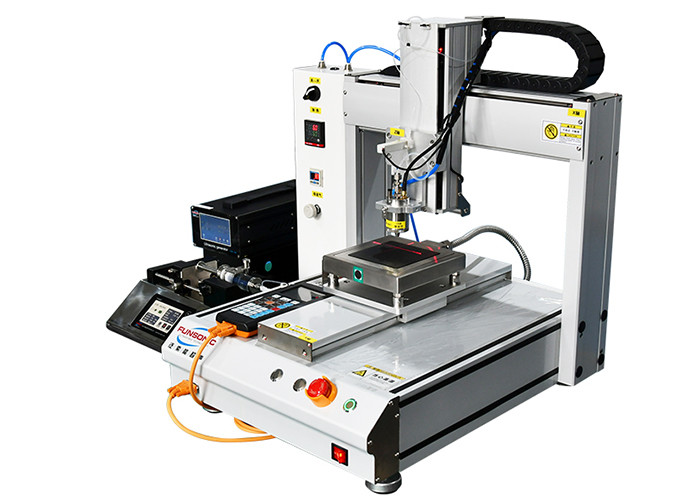

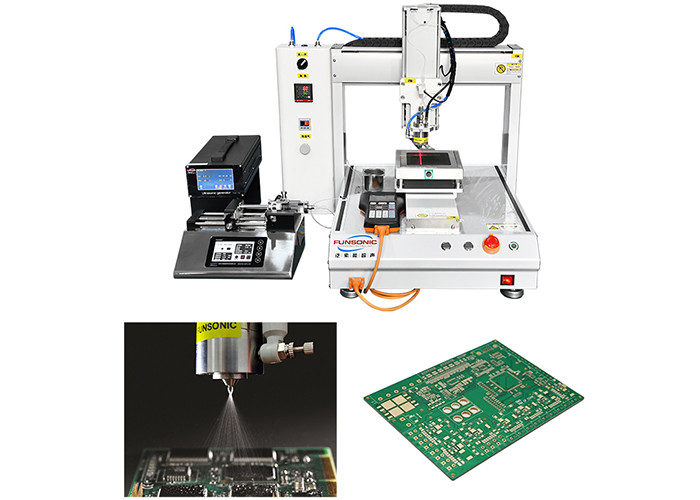

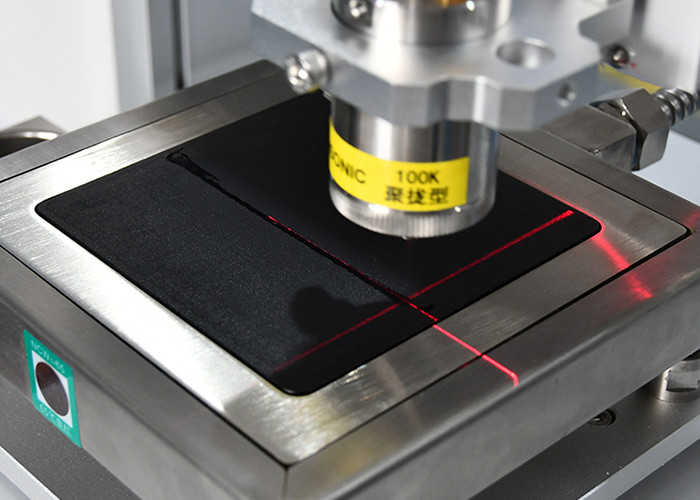

Ultrasonic Precision Coating Technology For Electronic PCB Printed Circuit Board



Ultrasonic Precision Coating Technology For Electronic PCB Printed Circuit Board 0Ultrasonic Precision Coating Technology For Electronic PCB Printed Circuit Board 1
