Ultrasonic Nano Material Coating System Spraying Nano Suspension
  • name
  • name
  • name
  • name

Ultrasonic Nano Material Coating System Spraying Nano Suspension

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-5006-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
50Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
1-25ml/min
Liquid Viscosity:
<30cps
Particle Size:
<8μm
Application:
Suitable For Large-area Spraying, Such As Glass Coating, Etc
Highlight:

Ultrasonic Spraying Nano Suspension

,

Ultrasonic Nano Material Coating System

,

Nano Suspension Spraying Coating System

Product Description

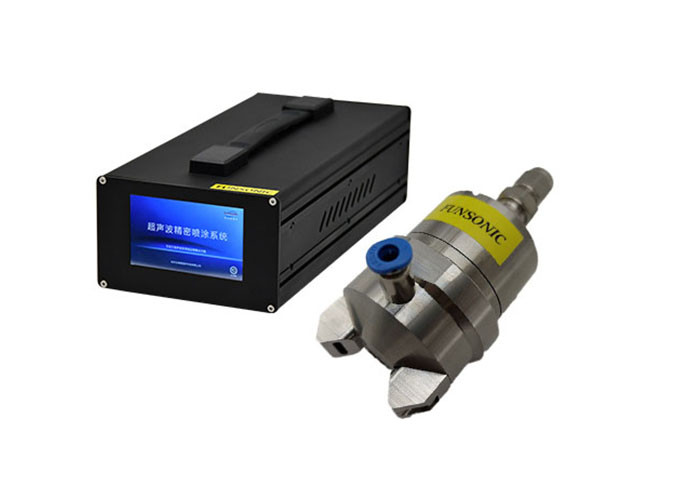

Ultrasonic Nano Material Coating System Spraying Nano Suspension





Description:



The ultrasonic nano material coating system is particularly suitable for spraying nano suspensions, such as carbon nanotubes, nanowires, perovskites, graphene, etc. Due to the inherent ultrasonic vibration of the nozzle, energy will decompose the aggregated particles in the suspension, causing the liquid to undergo continuous mechanical vibration throughout the coating process without damaging the material.
The ultrasonic nano material coating system is used to deposit uniformly thick nano layers on substrates of any width. Even on very wide widths, these very thin and highly uniform coatings can be formed, making ultrasonic spraying technology particularly suitable for many precision nanotechnology spraying applications.





Parameters:



Model FSW-5006-L
Name 50Khz Wide Ultrasonic Nozzle Atomization
Frequency 50Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 50-100
Spray flow(ml/min) 1-25
Spray height(mm) 50-300
Liquid viscosity (cps) <30
Particle size (μm) <10
Diversion pressure (Mpa) <0.1
Application Suitable for large-area spraying, such as glass coating, etc





Advantages :



1. Able to spray ultra-thin conductive layers with the required electrical and transparent properties.
2. Nanoparticles are evenly distributed on the substrate, maximizing the utilization of the material.
3. Targeted low-speed spraying results in minimal overspray of expensive materials.
Compared with other deposition methods such as dip coating, spin coating, and traditional spray coating, ultrasonic coating systems have greater flexibility, control, and cost-effectiveness.
5. Choose droplet sizes as small as 13 microns based on the frequency of the nozzle used.
6. The programmable XYZ coating system provides a complete solution for your coating process, from R&D laboratory scale to mass production.
7. Fine wire or large-area nano coating.

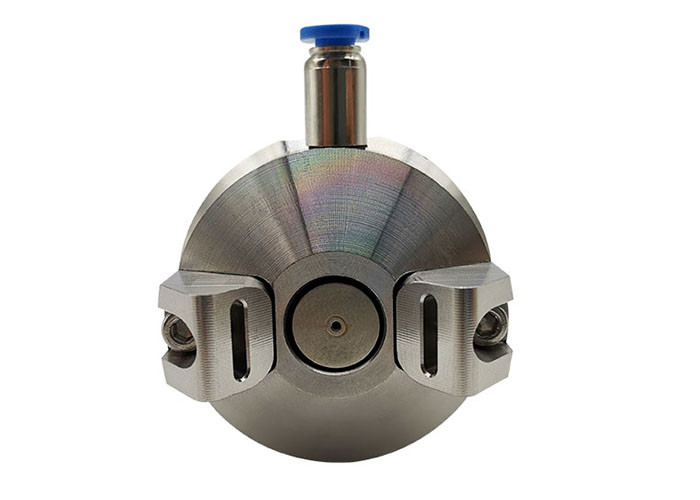

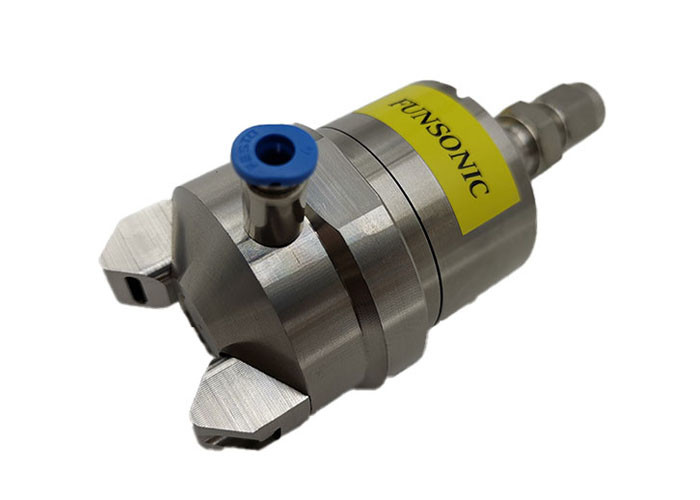

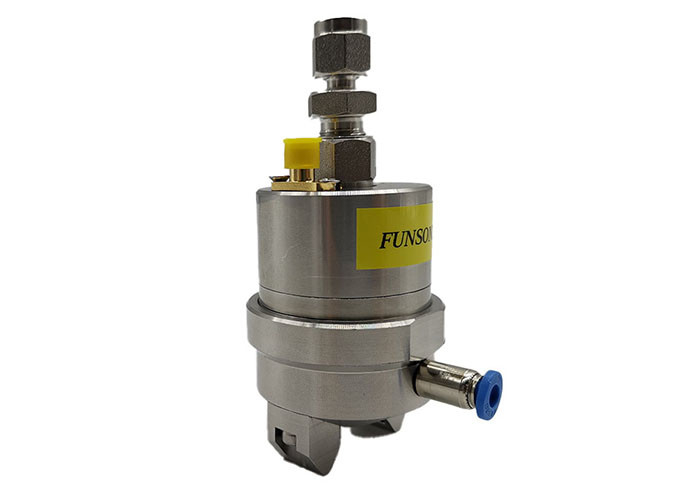

Ultrasonic Nano Material Coating System Spraying Nano Suspension



Ultrasonic Nano Material Coating System Spraying Nano Suspension 0Ultrasonic Nano Material Coating System Spraying Nano Suspension 1
