40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator
  • name
  • name
  • name
  • name

40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-4004-X
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
40Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.5-10ml/min
Liquid Viscosity:
<15cps
Particle Size:
<8μm
Application:
Suitable For Vacuum Blood Collection Tube Spraying, Syringe Silicone Oil Spraying
Highlight:

CNC Digital Generator Atomizing Nozzle

,

40Khz Ultrasonic Atomizing Nozzle

,

Customized Long Atomizing Nozzle

Product Description

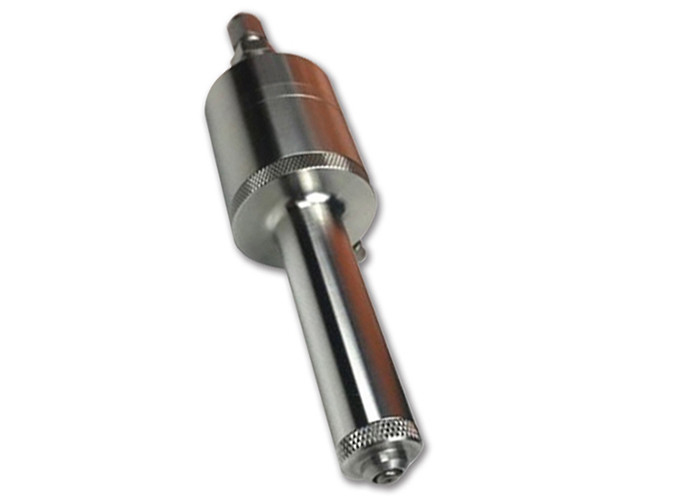

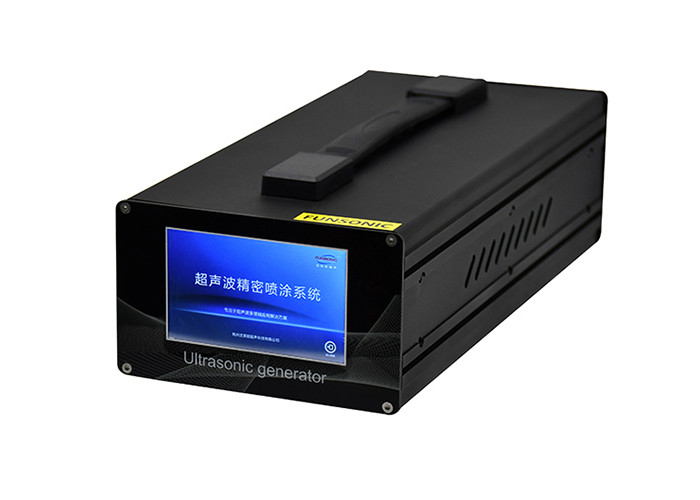

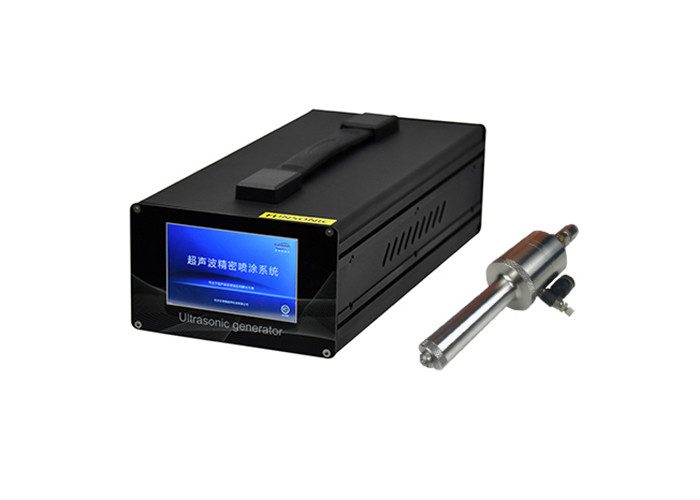

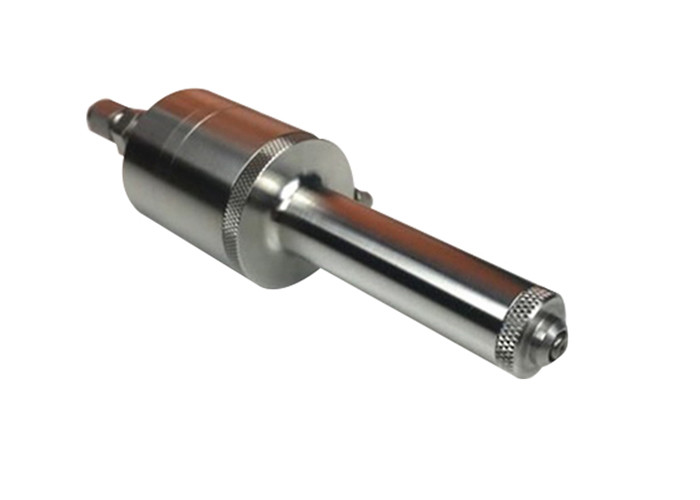

40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator





Description:



The 40K ultrasonic long nozzle atomizing nozzle is a device specifically designed to generate small droplets, widely used in fields such as medical, agricultural liquid supply, and environmental control. Different from the traditional pneumatic spray and high-pressure spray systems, the ultrasonic long nozzle spray nozzle has a power between a few watts and dozens of watts. It directly converts the liquid into droplets through high-frequency vibration, producing a large number of tiny 15-40 micron droplets under low power consumption.
FUNSONIC can choose different specifications and models of nozzles based on coating requirements and the substrate or shape processed by the user, such as gathering type, wide width type, wide area type, eddy current type, scattering type, long nozzle type, probing type, line spraying type, high temperature type, etc.





Parameters:



Model FSW-4004-X
Name 40Khz Probe Ultrasonic Nozzle Atomization
Frequency 40Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 1-3
Spray flow(ml/min) 0.5-10
Spray height(mm) 10-20
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.01
Application Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying





Advantages :



1. Reduce excessive spraying waste.
2. Non blocking design can reduce maintenance and downtime.
3. Highly controllable spray produces reliable, repeatable and consistent results.
4. Able to spray ultra-thin and clear lines, usually without masking.
5. The kinetic energy of soft speed spray is very small, and it will not damage or change most fragile material structures.





40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator



40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator 040Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator 1
