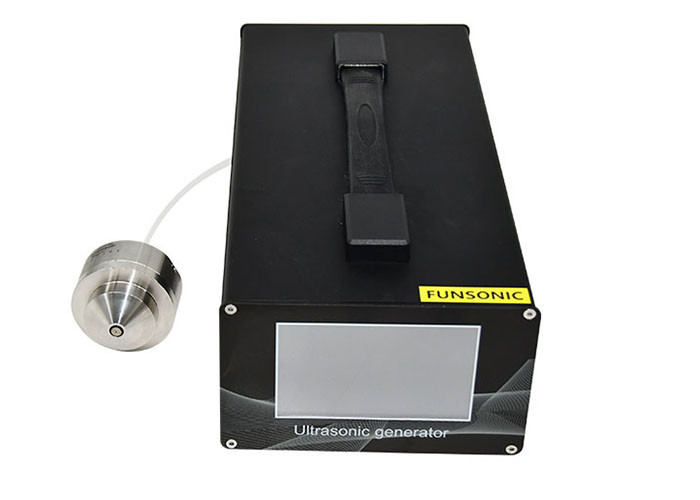

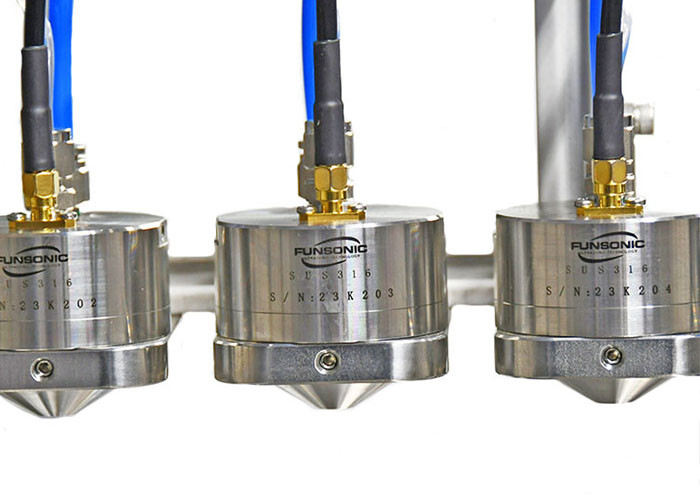

PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-1108-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
110Khz
Max Power:
15w
Automized Particle Size Range:
15-28μm
Spray Flow:
0.5-12ml/min
Liquid Viscosity:
<20cps
Particle Size:
<5μm
Application:
Suitable For Flat Object Spraying
Highlight:

Ultrasonic Conical Spray Nozzle

,

PEM Ultrasonic Conical Spray Nozzle

,

Fuel Cell Ultrasonic Conical Spray Nozzle

Product Description

PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle





Description:



PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle adopts an air cover, which can form a wide "vortex like" dispersion, making it very suitable for coating flat objects such as PEM fuel cells and solar cells. It is best to use a reciprocating vortex type nozzle. You can use a simple XY workbench.

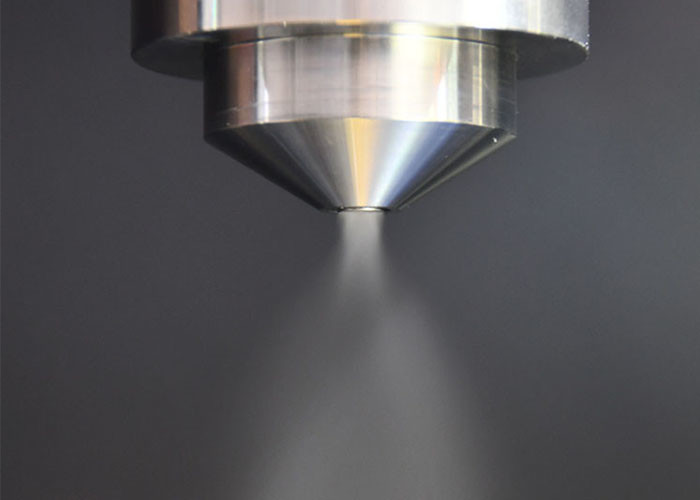

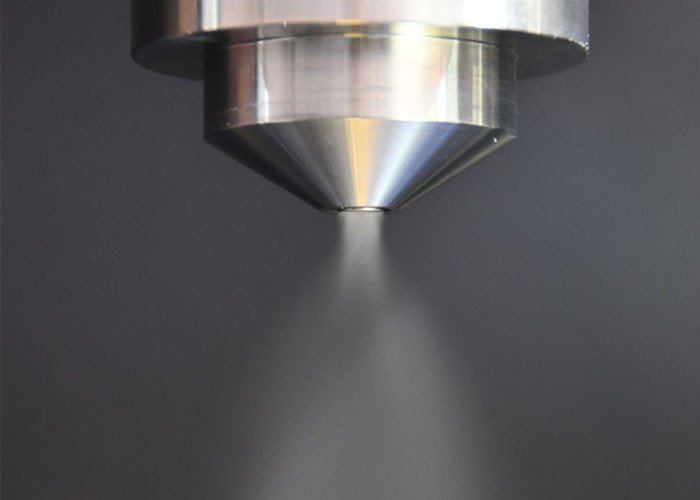

PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle produces a medium width spray pattern, which is wider than the gathering type ultrasonic nozzle, but narrower than the spray pattern of the wide type ultrasonic nozzle. The vortex type ultrasonic nozzle uses low-speed rotating air/gas to produce a wide and stable spray pattern. The vortex type ultrasonic nozzle produces a conical spray pattern with a diameter of 2 – 4 inches (50 – 100 mm), depending on the distance from the substrate. The vortex velocity can vary depending on the application.





Parameters:



Model FSW-1108-L
Name 110Khz Cyclone Cone Ultrasonic Nozzle Atomization
Frequency 110Khz
Atomized particle size range(μm) 15-28
Spray width(mm) 50-100
Spray flow(ml/min) 0.5-12
Spray height(mm) 50-200
Liquid viscosity (cps) <20
Particle size (μm) <5
Diversion pressure (Mpa) <0.15
Application Suitable for flat object spraying





Influence Factor:



1. Ink formula:
Catalyst perovskite precursor
Types and proportions of solvents
Types and concentrations of additives (such as stabilizers, cosolvents, etc.)
2. Spraying conditions:
Nozzle substrate distance
Nozzle movement speed
Nozzle scanning mode
Ultrasonic power and frequency
3. Substrate processing:
Types of substrate materials
Substrate surface pretreatment (cleaning, modification, etc.)
Substrate temperature
4. Post processing steps:
Heat treatment temperature and time
Annealing atmosphere (such as nitrogen, vacuum, etc.)





PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle



PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle 0PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle 1
