Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-1005-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
100Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.01-1ml/min
Liquid Viscosity:
<15cps
Particle Size:
<8μm
Application:
Medical Balloon, Stent, Fine Wire Spraying
Highlight:

Antiplatelet Drug Ultrasonic Atomizer Nozzle

,

Line Spray Ultrasonic Atomizer Nozzle

,

Focused Ultrasonic Atomizer Nozzle

Product Description

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​





Description:

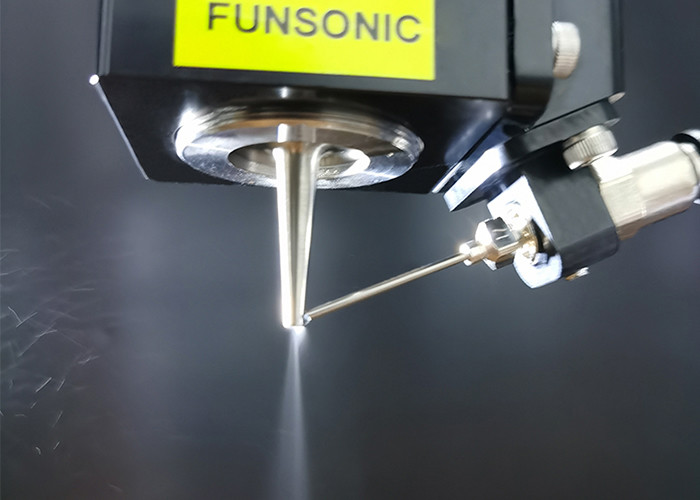

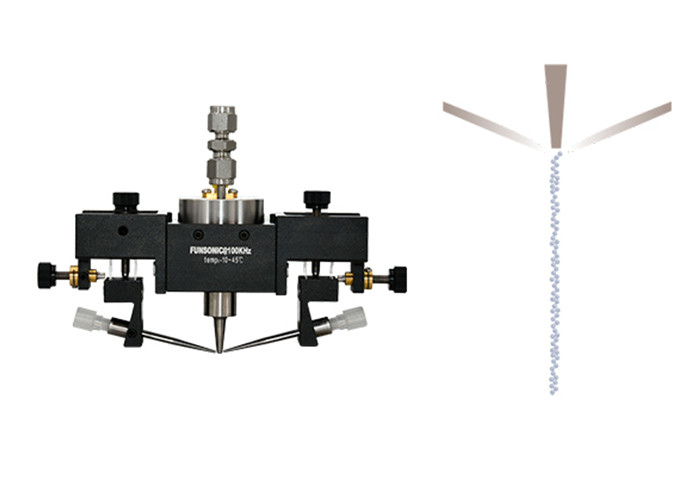

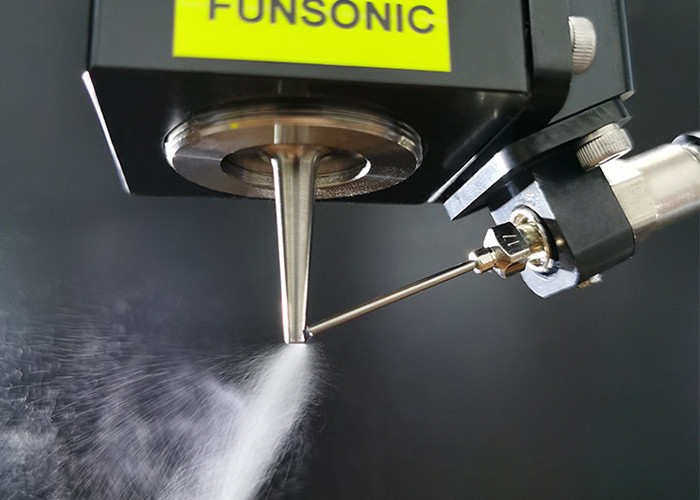

The line spray focused antiplatelet drug spraying ultrasonic atomizer nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. The liquid is delivered to the atomization surface of the nozzle through an isolated hypotube, while the air/gas delivered through the nozzle hole at a fixed low pressure shapes the atomized droplets into a very precise target jet with a diameter of only 0.020 inches (0.5 millimeters).

Each ultrasonic nozzle operates at a specific resonant frequency, which determines the median size of the droplet. The difference in droplet size is very small, and its distribution can be accurately predicted within a certain range through mathematical calculations. For example, a 120 kHz nozzle produces a median droplet size of 18 microns when spraying water. The higher the frequency, the smaller the decrease in median value.





Parameters:



Model FSW-1005-L
Name 100Khz Line Ultrasonic Nozzle Atomization
Frequency 100Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 0.5-2
Spray flow(ml/min) 0.01-1
Spray height(mm) 10-20
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.02
Application Suitable for Medical balloon, stent, fine wire spraying





Composition :



1. Balloon catheter: A balloon catheter is a soft, expandable catheter with a balloon at its end. Balloons can be inflated or injected with liquid to create a stable workspace in the target area.
2. Ultrasonic spraying system: The balloon catheter is equipped with an ultrasonic spraying system, including an ultrasonic nozzle, a spraying agent supply system, and a coating transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles, which are then sprayed onto the target surface through an airflow.
3. Control system: used to control the operation of the entire equipment and adjust the spraying parameters. The control system usually includes a touch screen interface for users to set spraying parameters, monitor equipment status, and adjust operating modes.

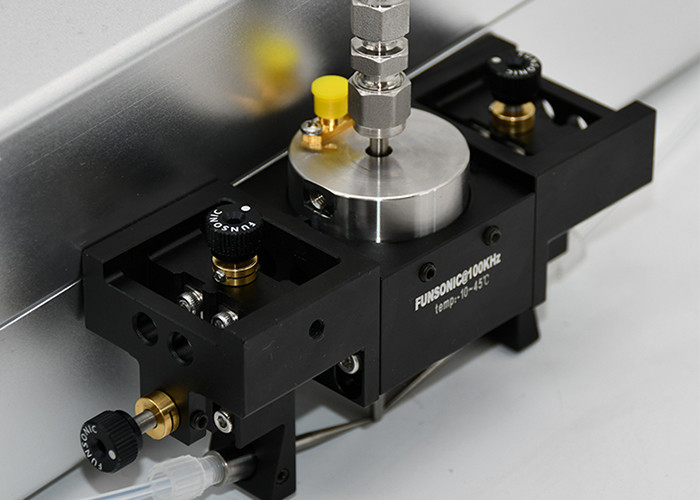

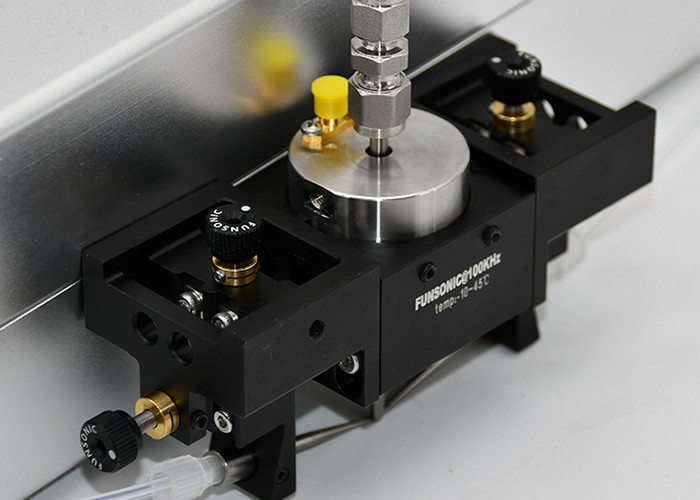

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​



Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating 0Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating 1
