120Khz Low Power Ultrasonic Spray Nozzle Coating Technology

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-12001-L
Production Name:
Ultrasonic Widemist Spray Nozzle
Frequency:
120Khz
Max Power:
1-15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.5-20ml/min
Liquid Viscosity:
<30cps
Particle Size:
<10μm
Application:
Ultra Large Area Spraying Glass Coating
Highlight:

120Khz ultrasonic spray nozzle

,

low power ultrasonic coating technology

,

ultrasonic spray coating machine nozzle

Product Description
120Khz Low Power Ultrasonic Spray Nozzle Coating Technology
Product Specifications
Attribute Value
Production Name Ultrasonic Widemist Spray Nozzle
Frequency 120Khz
Max Power 1-15w
Automized Particle Size Range 15-40μm
Spray flow 0.5-20ml/min
Liquid viscosity <30cps
Particle size <10μm
Application Ultra large area spraying, Glass coating
Product Description

The 120Khz Low Power Ultrasonic Spray Nozzle is a key component in atomization equipment that generates high-energy atomization medium. This critical component significantly impacts atomization efficiency and process stability by controlling flow rate and pattern, effectively crushing liquid metal to produce powders with specific properties.

Constructed from high-strength titanium alloy and proprietary metals, these nozzles offer exceptional chemical corrosion resistance and superior acoustic performance. Available in multiple configurations including wide area, wide width, scattering, gathering, probing, line spraying, and vortex types to meet diverse application requirements.

Technical Parameters
Type FSW-12001-L
Name Ultrasonic Wide Type Spray Coating Nozzle
Frequency 120Khz (50/60/100Khz for selection)
Atomized particle size range (μm) 40-120
Spray width(mm) 30-60
Spray flow(ml/min) 0.5-20
Spray height(mm) 50-150
Permissible liquid viscosity(cps) <30
Allow particle size(μm) <10
Diversion pressure (Mpa) <0.05
Application Suitable for large-area spraying, such as proton exchange membranes
Ultrasonic Membrane Electrode Coatings

The ultrasonic spraying method enables highly automated membrane electrode production with superior efficiency and lower manufacturing costs, ideal for quantitative production requirements. This technology achieves approximately 90% platinum utilization rate, significantly reducing material consumption and saving expensive catalyst ink.

Our ultrasonic coating system produces exceptionally durable, uniform carbon-based catalyst ink coatings for fuel cells and proton exchange membrane (PEM) electrolyzers (including Nafion) without causing membrane deformation. The system handles various spray suspensions containing:

  • Carbon black ink
  • Polytetrafluoroethylene binder
  • Ceramic slurry
  • Platinum and other precious metals

The technology also supports manufacturing of metal oxide suspensions in platinum, nickel, iridium, and ruthenium fuel cell catalyst coatings for various applications including PEM fuel cells, polymer electrolyte membrane (PEM) electrolytes, DMFC (direct methanol fuel cells), and SOFC (solid oxide fuel cells), delivering high load capacity and superior cell efficiency.

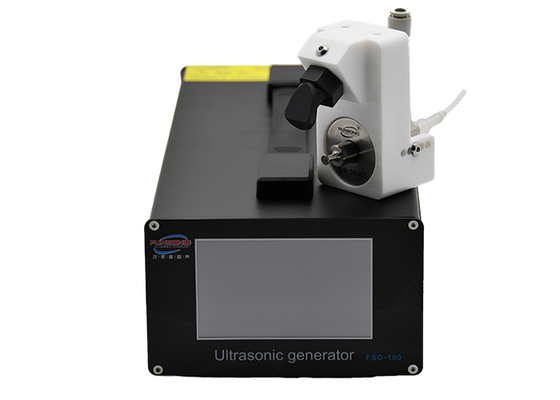

120Khz Low Power Ultrasonic Spray Nozzle Coating Technology 0 120Khz Low Power Ultrasonic Spray Nozzle Coating Technology 1
