CIGS Solar Panels Thin Film Ultrasonic Atomization

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
20-200khz For Optional
Max Power:
50w
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-260mm/pcs，Scalable
Spray Uniformity:
<5%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

CIGS solar panels thin film

,

ultrasonic spray coating machine

,

thin film ultrasonic atomization

Product Description

CIGS Solar Panels Thin Film Ultrasonic Atomization


Description:

CIGS thin film cells, as the substrate of stacked cell structures, have unique advantages in the development of flexible solar energy devices. As is well known, flexible CIGS stacked cells have the characteristics of lightweight, high efficiency, and radiation resistance, and have great potential in fields such as drones, wearable devices, and space satellites that are highly sensitive to three-dimensional space and weight.
The ultrasonic CIGS thin film battery spraying technology can accurately control the film thickness at the level of hundreds of nanometers, avoid pinhole defects, effectively improve battery performance, and significantly improve its photoelectric conversion efficiency.


Parameters:


Product Type

Intelligent Ultrasonic Precision Coating Machine desktop Type
FS620
Spray Nozzle Operating Frequency 20-200KHz (Normally use 60100110120K)
Nozzle Power 1-15W
Continuous Spraying Volume Max 0.01-50ml/min
Effective Spraying Width 2-100mm
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Dry Film Thickness 20nm-100μm
Solution Viscosity ≤30cps
Temperature Range 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.15MPA
Input Voltage 220V±10%/50-60Hz
Exercise Mode XYZ three-axis, independently programmable
Control Mode FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump
Ultrasonic Dispersion System (Optional) 20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 100W



Advantage:


1. droplet controllability: By adjusting the frequency and amplitude, droplets can be exactly managed to decrease splashing and agglomeration throughout the spraying process, and enhance the uniformity of the film.

2. High fabric utilization rate: The spraying effectivity can attain over 95%, notably lowering the waste of treasured metals (such as silver electrodes) or uncommon substances (such as perovskite).

3. Improved battery performance: By using ultrasonic spraying, the efficiency of perovskite perovskite CIGS monolithic devices has been increased by nearly 20%, significantly better than traditional single junction perovskite cells and CIGS cells.

4. Wide applicability: Compatible with solution based materials (such as organic polymers, perovskite precursors), nanoparticle suspensions, etc., suitable for various substrates such as glass, plastics, metals, etc

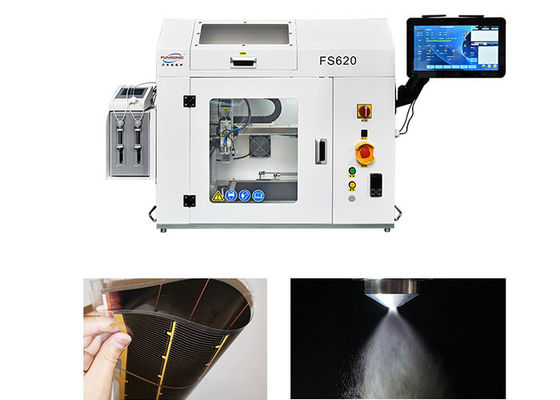

 CIGS Solar Panels Thin Film Ultrasonic Atomization


CIGS Solar Panels Thin Film Ultrasonic Atomization 0

CIGS Solar Panels Thin Film Ultrasonic Atomization 1
