40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine
  • name
  • name
  • name
  • name

40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSSP-40010
Production Name:
Ultrasonic Dispersion System
Frequency:
40Khz
Power:
200W
Injection Container:
25ml/ 50ml/100ml
Ultrasonic Generator:
Precision Digital Generator, Full Automatic Tracking And Stability System, Transient Frequency Search And Start, Start And Stop Immediately, 24hours Continuously Working
Voltage:
220V Or 110V
Highlight:

40Khz ultrasonic dispersion system

,

ultrasonic spray coating machine

,

coating machine with injection system

Product Description

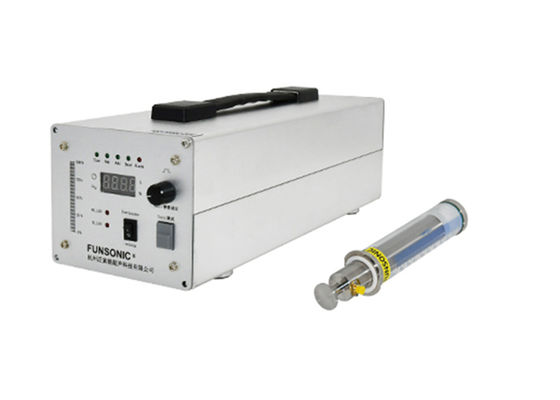

40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine


Description:

40Khz Ultrasonic Dispersion Injection flow syringe pump System for Spraying Coated Machine is achieved by embedding high-frequency ultrasonic transducers into micro containers (such as sample injectors/syringes), which can effectively disperse and transport various nanosuspensions, thereby uniformly dispersing nanoscale and submicron particles and transporting liquids. Sedimentation and agglomeration can be avoided during the transportation and spraying of suspensions. Nanoparticle dispersion systems can be installed in various injection pumps and are often used as important auxiliary accessories in precision spraying systems. It can achieve high-performance cavitation treatment and effectively mix, disperse, and crush samples such as blood, saliva, and suspended particles through ultrasonic dispersion systems.

Parameters:

Item Name

Ultrasonic Dispersion System
Frequency 40Khz
Power 200w
Injection Container  25ml/ 50ml/100ml
Ultrasonic Generator Precision digital generator, full automatic tracking and stability system, transient frequency search and start, start and stop immediately, 24hours continuously working
Voltage 220V or 110V
Dimension of generator  360*120*110mm
Weight 5Kgs



Application:

1. Pharmaceutical industry: used for uniform dispersion and emulsification of drugs, improving their bioavailability.
2. Cosmetics: realize effective ingredient mixing in the production of lotion and cream.
3. Food industry: used for uniform mixing and dispersion of dairy products, seasonings, etc.
4. Chemical industry: used for dispersing pigments, coatings, and other chemical materials.
5. Materials Science: Achieving uniform distribution of components in the production of composite materials.



40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine

40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine 0

40Khz Ultrasonic Dispersion Injection System For Spraying Coated Machine 1
