Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
60khz
Max Power:
1-15W
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-260mm/pcs，Scalable
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

Ultrasonic spray coating machine for photovoltaic cells

,

Thin film nanoparticle coating machine

,

Ultrasonic atomization coating with warranty

Product Description

Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating



Description:


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating is an advanced process that uses ultrasonic technology to accurately coat the key layers of thin film photovoltaic cells. It has significant advantages in improving cell efficiency and production efficiency, and is a key technical support for promoting the industrialization process of thin film photovoltaic cells.

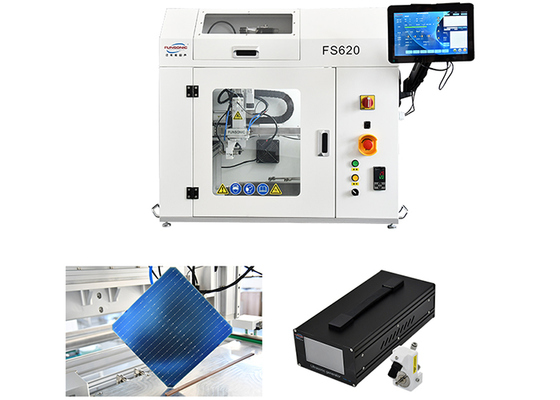

FUNSONIC Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating FS620 is mainly used for qualitative testing in scientific laboratories, small and medium batch production, and medium-sized areas. The entire device has a simple and elegant structure, using XYZ three-axis precision motion modules and equipped with FUNSONIC's independently developed ultrasonic spraying dedicated control system, achieving a comprehensive trajectory editing system with matching functions and achieving uniform and precise spraying



Parameters:


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 0




Features :


1. High uniformity coating
Accurately control the spraying amount and coverage range of the coating
Ensure uniform and dense coating of key thin films such as light absorption layer and electrode layer
2. Nanoscale atomized particles
The coating is atomized into extremely fine particles at the nanoscale
Improve the density and electrical properties of the coating, and reduce material loss
3. Low temperature coating
Adopting ultrasonic spraying technology at low temperature
Avoid film damage and battery performance degradation caused by high temperatures
4. High production efficiency
5. Environmental protection and energy conservation
6. Suitable for various photovoltaic technologies
Can be used for coating thin film photovoltaic cells such as a-Si, CIGS, CdTe, etc
Meet the production needs of different photovoltaic technology routes


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 1
   Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 2



Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 3


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 4


Ultrasonic Thin Film Photovoltaic Cell Atomization Nano Particle Coating 5
