Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Production Ultrasonic Spray Coating Machine-FS2000X Film Coater

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T,Western Union
Supply Capacity: 100 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS2000X
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
20-150khz
Max Power:
15W
Continuous Spraying Volume Max:
0.01-50ml/min，Scalable
Effective Spraying Width:
2-100mm
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

Ultrasonic spray coating machine FS2000X

,

Film coater ultrasonic spray machine

,

FS2000X ultrasonic film coating equipment

Product Description

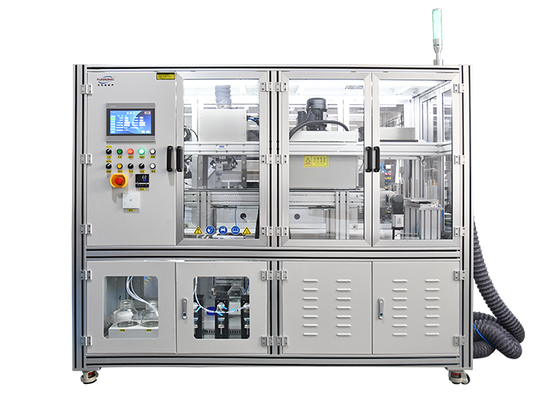

Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
The FS2000X Film Coater, a production-grade ultrasonic spray coating machine, adopts piezoelectric ultrasonic nozzles vibrating at 20–150 kHz high frequency. This process atomizes coating solutions into uniform ultra-fine droplets ranging from 10 to 90 μm, with directional deposition realized via low-pressure shaping gas and electrostatic assistance.

Equipped with multiple spray nozzles for high-efficiency spraying. Upgraded on the basis of FS2000 model with an automatic spraying production line to realize non-stop continuous production. on flexible roll materials such as thin films, non-woven fabrics and metal foils.

Technical Specifications
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Key Advantages
  1. Excellent coating precision: Coating thickness can be precisely adjusted from 20 nm to 80 μm, delivering a film thickness uniformity of over 95%. The finished coating features a flawless surface with no orange peel defects, pinholes or thick edge issues.
  2. Superior material utilization rate: The equipment effectively reduces overspray loss, greatly cutting material costs when applying high-value precious metal catalysts and ceramic slurries.
  3. Soft atomization with no substrate penetration: The gentle atomization process avoids slurry soaking on non-woven fabrics and porous membranes, perfectly preserving the substrates’ original air permeability and porous structure.
  4. Anti-clogging nozzle design: Without high-pressure air impact, the nozzle adapts well to high-solid-content and particle-containing slurries, enabling stable and long-duration continuous production.
  5. Eco-friendly and low-consumption operation: It requires no high-pressure gas supply. Waste liquid can be recycled, resulting in extremely low exhaust emissions and greener production.

Nozzle Options
Ultrasonic nozzle options and configurations
Industrial Applications
Ultrasonic spraying industrial application 1 Ultrasonic spraying industrial application 2 Ultrasonic spraying industrial application 3 Ultrasonic spraying industrial application 4
Tags:

Anti Restenosis Polymers Medical Spraying Machine,

Ultrasonic Probe Type Nozzle 40Khz,

Ultrasonic Wide Area Spraying Nozzle
