20Khz Handheld Ultrasonic Impact Gun With Processing Speed ≥500mm/min And 1500w Power
  • name
  • name
  • name
  • name

20Khz Handheld Ultrasonic Impact Gun With Processing Speed ≥500mm/min And 1500w Power

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
FSA-2010-H
Frequency:
20khz
Power:
1500w
Output Amplitude:
30-100μm
Processing Speed:
≥500mm/min
Input Voltage:
220V±10%,50/60Hz, 4A
Size Of Impact Head:
Φ3Φ5Φ8 Or Customized
Highlight:

20Khz Impact Gun

,

1500w Impact Gun

,

Handheld Ultrasonic Impact Gun

Product Description

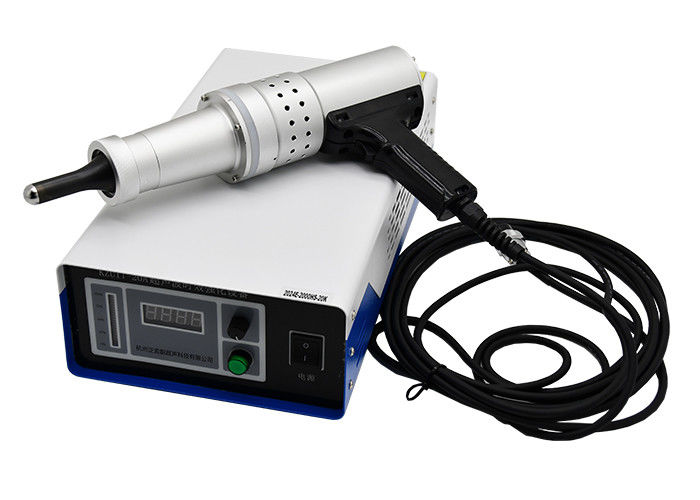

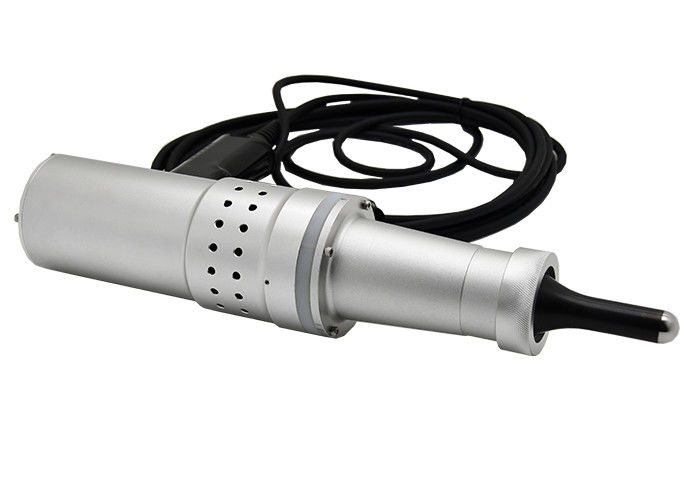

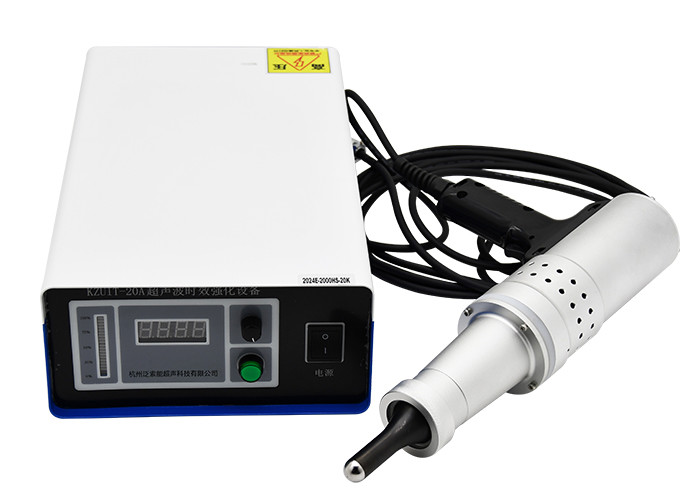

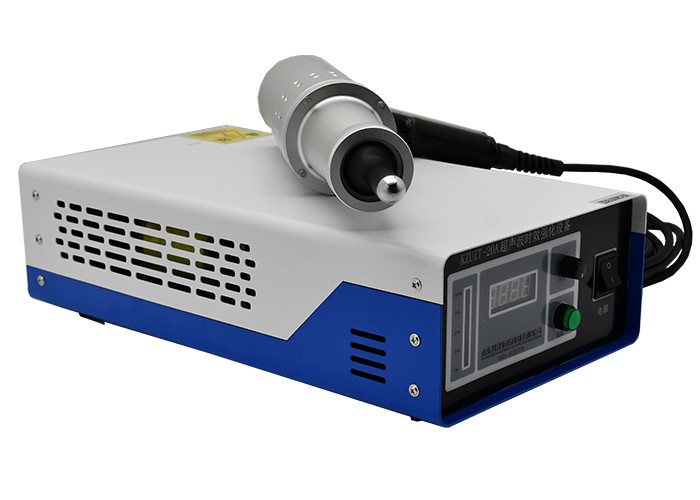

20Khz Handheld Ultrasonic Impact Gun





Description:



20Khz handheld ultrasonic impact gun is a tool that uses high-power ultrasonic waves to push the impact tool. The impact needle impacts the metal surface at a frequency of 20000 times per second. Due to the high frequency, efficiency, and focused energy of the ultrasonic waves, the metal surface undergoes significant compression plastic deformation. At the same time, ultrasonic shock waves change the original stress field, generating a certain numerical compressive stress, which strengthens the ultrasonic impact site.
Ultrasonic impact gun can eliminate internal stress and surface defects caused by welding process. Prevent deformation or cracking of the workpiece caused by stress release and suppress crack initiation. Improve the yield strength and fatigue life of welds, and increase surface hardness.





Parameters:



Item No FSA-2010-H
Frequency 20Khz
Max Power 1500w
Output Amplitude 30-100μm
Voltage AC 220V±10%, 50HZ
Conversion Efficiency 90%
Processing Speed ≥500mm/min
Materials of Impact Head Specially tungsten steel
Size of Impact Head Φ3Φ5Φ8 or Customized
Common Impact Heads four pins, single pin, or customized





Advantages:


1. High efficiency and excellent energy saving: output power adapts to the load, effectively improving efficiency
2. Improve joint fatigue strength: It can increase the fatigue strength of welded joints by 50% -120%, and extend the fatigue life by 5-100 times
3. Professional design of impact gun: completely eliminates the problems of traditional ultrasonic and industry equipment being cumbersome to operate and unable to operate on site, reducing the workload of on-site personnel.
4. Fully automatic tracking: using CNC electrical box, frequency fully automatic scanning, fully automatic tracking





20Khz Handheld Ultrasonic Impact Gun





20Khz Handheld Ultrasonic Impact Gun With Processing Speed ≥500mm/min And 1500w Power 020Khz Handheld Ultrasonic Impact Gun With Processing Speed ≥500mm/min And 1500w Power 1
