15 Khz Piezoelectric Ceramic Ultrasonic Welding Transducer 3600 Watt 60mm Diameter

15 Khz Piezoelectric Ceramic Ultrasonic Welding Transducer 3600 Watt 60mm Diameter

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-6BD
Products Name:
Ultrasonic Welding Transducer
Frequency:
15 Khz
Output Power:
3600 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
60mm
Qty Of Ceramic Discs:
6pcs
Capacitance:
19-22.5nf
Amplitude:
10 Um
Highlight:

ultrasonic high power transducer

,

piezoelectric ceramic transducer

Product Description

60MM Diameter Pizoelectric Ceramics of Ultrasonic Welding Transducer





Description:



Sound waves are the form of propagation of an object's mechanical vibration state (or energy). The so-called vibration refers to the form of reciprocating motion of the mass point of the substance near its equilibrium position. For example, after the drum surface is knocked, it vibrates up and down. This vibration state propagates through the air medium in all directions, which is sound waves. Ultrasonic means that the vibration frequency is greater than 20,000 Hz, and the number of vibrations per second (frequency) is very high, exceeding the upper limit of the human ear (20000 Hz). People call this inaudible sound wave ultrasonic. Ultrasound and audible sound are essentially identical. They have a common mode of mechanical vibration, which is usually propagated in the elastic medium in the form of longitudinal waves. It is a form of energy propagation, and the difference is that the ultrasonic frequency is high. The wavelength is short, and it has good beamability and directivity along a straight line within a certain distance. At present, the frequency range used for abdominal ultrasound imaging is between 2 and 5 megaHz, and is usually 3 to 3.5 megahertz (vibration per second). 1 time is 1 Hz, 1 mega Hz = 10^6 Hz, that is, 1 million vibrations per hot plate machine, and the frequency of audible waves is between 16-20,000HZ)





Specifications:



Model QR-6015-6BD
Frequency 15 khz
Output power 3600 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 60mm
Qty of ceramic discs 6pcs
Capacitance 19-22.5nf
Amplitude 10 um
Application Plastic welding machine





Application:



The electronics industry is the earliest and most popular industry for ultrasonic cleaning applications.
Cleaning of electronic components: electronic components, such as housings for semiconductor tubes, housings for ICs, housings for crystals, housings for relays, and tube holders.
Substrate cleaning of electronic components: The base of electronic components is made of semiconductor material and encapsulated in a metal or plastic housing. Before packaging, not only the housing must be cleaned, but also the substrate must be cleaned, such as IC chip, resistor, crystal, semiconductor, original film circuit, etc.
PCB board cleaning: Most of the electronics industry in China use PCB. The flux used for soldering PCB components is divided into water-soluble, rosin-based and no-clean types. The first two are used. Ultrasonic cleaning is used (and many are washed with alcohol). The no-clean type should not be cleaned in principle. However, most manufacturers in the world still need cleaning even if they use no-clean flux soldering components. In particular, high-density PCBs and high-density ICs do not clean or do not use ultrasonic cleaning, which will lead to the adsorption of dust between high-density lines and IC outlets. Once the humidity is high, high-density lines and feet are prone to occur. A short circuit occurs and a fault occurs, and once the environment is dry, the short circuit fault disappears by itself, and such a fault is not easy to find. Therefore, electronic machine factories all over the world insist on ultrasonic cleaning of PCB boards. In China, the military electronics complete machine factory has begun to promote, and has received the double benefits of improving product reliability and reducing after-sales service costs.
In the production of connectors, connectors, adapters, etc., it must be cleaned before plating and assembly. Otherwise, dust and oil adsorbed on these assembled parts will affect its electrical and insulating properties, especially some complex multi-cores. This is especially true for connectors.
Cleaning after processing of electronic materials: electronic materials such as wafers, silicon wafers, and piezoelectric ceramic sheets are products supplied to component manufacturers. Their products must be cleaned before leaving the factory, especially for manufacturers that make their mouths. Difficult, ultrasonic cleaning is the most effective way.





60MM Diameter Pizoelectric Ceramics of Ultrasonic Welding Transducer



15 Khz  Piezoelectric Ceramic Ultrasonic Welding Transducer 3600 Watt 60mm Diameter 0

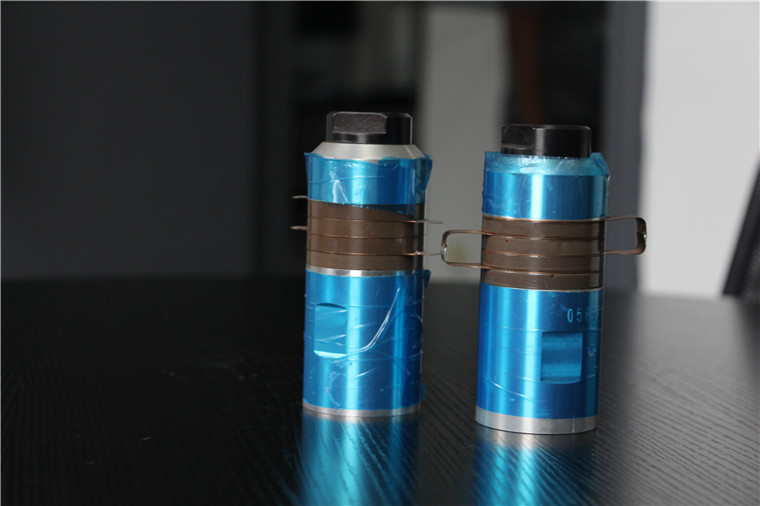

15 Khz  Piezoelectric Ceramic Ultrasonic Welding Transducer 3600 Watt 60mm Diameter 1
