Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-6015-4BD |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Welding Transducer | Frequency: | 15 Khz |
|---|---|---|---|
| Output Power: | 2600 Watt | Joint Bolt: | M18*1.5 |
| Ceramic Disc Diameter: | 60mm | Qty Of Ceramic Discs: | 4pcs |
| Capacitance: | 9-13.5nf | Amplitude: | 10 Um |
| Highlight: | ultrasonic high power transducer,piezoelectric ceramic transducer |
||

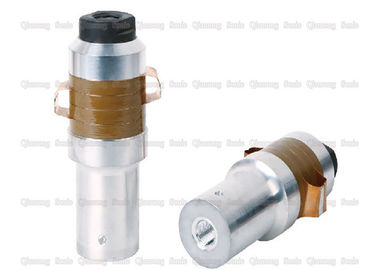

Inverted Horn 15Khz 2600w Ultrasonic Transducer with 4pcs Ceramics
Principle:
The transmission of vibration in the object forms a wave. There must be two conditions for the formation of such waves: one is the source of vibration and the other is the propagation medium. The classification of waves generally has the following types: First, classification according to the direction of vibration and the direction of propagation. When the direction of vibration is perpendicular to the direction of propagation, it is called a transverse wave. When the direction of vibration coincides with the direction of propagation, it is called a longitudinal wave. Second, according to the frequency classification, we know that the human ear sensitive hearing range is 20HZ-20000HZ, so the wave within this range is called sound wave. Waves below this range are called infrasound waves, and waves above this range are called ultrasonic waves.
Specifications:
| Model | QR-6015-4BD |
| Frequency | 15 khz |
| Output power | 2600 watt |
| Joint bolt | M18*1.5 |
| Ceramic disc Diameter | 60mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 9-13.5nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Common Questions about ultrasonic transducers:
1. The ultrasonic vibrator is damp. You can check the plug connected to the transducer with a megger. Check the insulation resistance value to judge the basic situation. Generally, the insulation resistance is greater than 5 megohms. If the insulation resistance value is not reached, the transducer is generally damp. The whole transducer (excluding the sprayed plastic case) can be placed in the oven for about 3 hours at 100 °C or used to remove moisture to the resistance value. Normal until now.
2, the transducer vibrator is fired, the ceramic material is broken, and it can be combined with the naked eye and the megohmmeter. Generally, as an emergency treatment measure, the individual damaged vibrator can be disconnected without affecting the normal use of other vibrators.
3, vibrator degumming, our transducer is made of cement, screw fastening double guarantee process, under normal circumstances.
4, stainless steel vibrating surface perforation, the general transducer can be used for 10 years at full load, the vibrating surface perforation may occur.
Inverted Horn 15Khz 2600w Ultrasonic Transducer with 4pcs Ceramics
