Replacement Branson 40khz Ultrasonic Converter 4TR With Military Style Connector
  • name
  • name
  • name
  • name

Replacement Branson 40khz Ultrasonic Converter 4TR With Military Style Connector

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-B4TR
Products Name:
Ultrasonic Replacement Converter
Frequency:
40 Khz
Output Power:
800 Watt
Joint Bolt:
M8
Ceramic Disc Diameter:
25mm
Capacitance:
5.5-6.0nf
Amplitude:
4um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

ultrasonic converter

Product Description

Replacement Branson 40khz Ultrasonic Converter 4TR with Military Style Connector





Description:



Replacement BRANSON 40 kHz converter with military style connector 4MB4, 4MB3, 4MC3, 943, 947



All of the components used in construction of these Branson 4TR replacement converters are all new, not recovered from scrapped units. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance.





Specifications:



Model QR-B4TR
Frequency 40 khz
Output power 800 watt
Joint bolt M8
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 5.5-6.0nf
Amplitude 4 um
Application Plastic welding machine





Attention:



The main consideration for using ultrasonic transducers is the matching with the input and output, followed by the mechanical mounting and mating dimensions. The frequency of the transducer is relatively straightforward. The frequency refers to a frequency measured by a transmission line method using a frequency (function) generator, a millivoltmeter, an oscilloscope, or the like, or a frequency measured by a network impedance analyzer or the like. Generally known as the small signal frequency. The customer connects the ultrasonic transducer to the drive power supply via a cable, and the actual operating frequency measured when the power is applied after no load or load. Because the customer matching circuits are different, the same ultrasonic transducers exhibit different frequencies at different driving power sources. Such frequencies cannot be used as a basis for discussion.

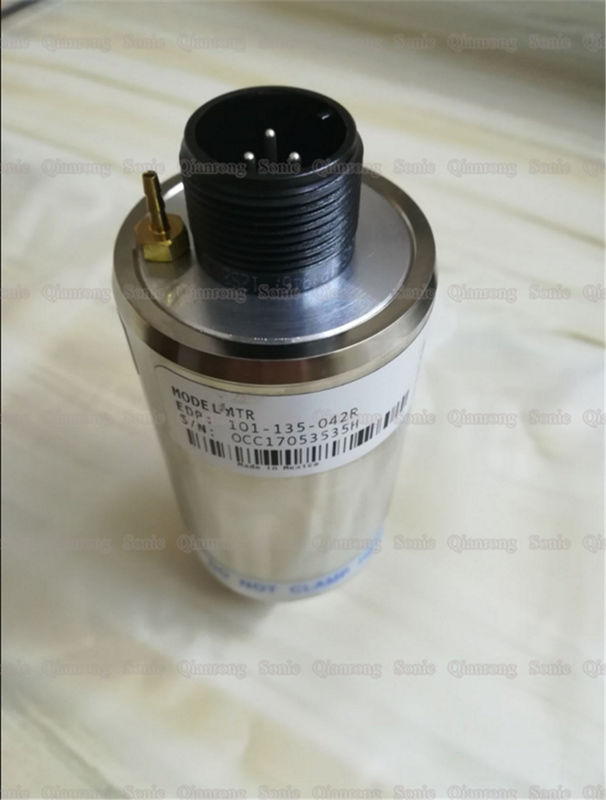

Replacement Branson 40khz Ultrasonic Converter 4TR with Military Style Connector



Replacement Branson 40khz Ultrasonic Converter 4TR With Military Style Connector 0





Replacement Branson 40khz Ultrasonic Converter 4TR With Military Style Connector 1







Tags:

ultrasonic welding machine parts,

high power ultrasonic transducer,

ultrasonic converter
