Press And Thruster Systems Ultrasonic Welding Converter , Heavy Duty Series Plastic Welding Tools
  • name
  • name
  • name
  • name

Press And Thruster Systems Ultrasonic Welding Converter , Heavy Duty Series Plastic Welding Tools

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D110-3122
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
2000 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
11-18nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

high power ultrasonic transducer

Product Description

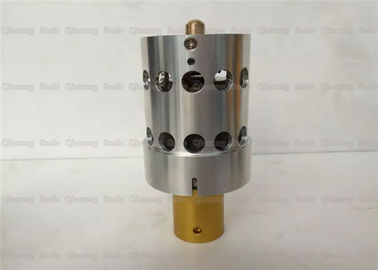

Heavy Duty Series Press and Thruster Systems Ultrasonic Series 20Khz Dukane Converter





Description:



Replacement Dukane 20 kHz 110-3122 converter. Standard on Ultra Series systems heavy-duty series press and thruster systems utilizing model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster.



Ultrasound, as its name implies, exceeds the sound waves of conventional sound waves. Sound waves are longitudinal waves that can be felt by the human ear and have a frequency range of 16 Hz to 20 kHz. When the frequency of sound waves is lower than 16 Hz, it is called infrasound wave, and when it is higher than 20 kHz, it is called ultrasonic sound wave.





Specifications:



Model QR-D110-3122
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-18nf
Amplitude 10 um
Application Plastic welding machine





There are four aspects to ultrasonic properties:



1) Ultrasonic waves can be effectively propagated in media such as gases, liquids, solids, and solid solutions.

2) Ultrasonic waves can transmit very strong energy.

3) Ultrasonic waves will produce reflection, interference, superposition and resonance of the hot melt machine.

4) When ultrasonic waves propagate in a liquid medium, strong impact and cavitation can occur at the interface.





Heavy Duty Series Press and Thruster Systems Ultrasonic Series 20Khz Dukane Converter



Press And Thruster Systems Ultrasonic Welding Converter , Heavy Duty Series Plastic Welding Tools 0





Press And Thruster Systems Ultrasonic Welding Converter , Heavy Duty Series Plastic Welding Tools 1

Tags:

ultrasonic welding machine parts,

high power ultrasonic transducer,

ultrasonic converter
