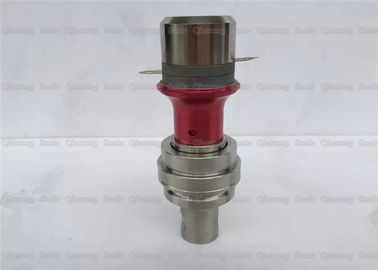

800w Ultrasonic Welding Converter With Red Valve Body 40Khz
  • name
  • name
  • name
  • name

800w Ultrasonic Welding Converter With Red Valve Body 40Khz

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D41C28
Products Name:
Ultrasonic Replacement Converter
Frequency:
40 Khz
Output Power:
800 Watt
Joint Bolt:
M8*1.25
Ceramic Disc Diameter:
35mm
Capacitance:
3-8nf
Amplitude:
4um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

ultrasonic converter

Product Description

40Khz 800w Ultrasonic Replacement Dukane Converter with Red Valve Body





Description:



This 41C28 Ultrasonic Dukane converter is identical to the 41C29-129 with different mount BNC 40khz machine-mountable probe.



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.





Specifications:



Model QR-D41C28
Frequency 40 khz
Output power 800 watt
Joint bolt M8*1.25
Ceramic disc Diameter 35mm
Qty of ceramic discs 2pcs
Capacitance 3-8nf
Amplitude 4 um
Application Plastic welding machine





Ultrasonic transducer process differentiation can be divided into the following points:



1. It can be identified from the manufacturing process and appearance of the ultrasonic transducer. The transducer indirectly shows that the company pays attention to the quality of the product, and the quality of the process and appearance is naturally better. Moreover, the design process indirectly affects the quality of production.

2. It can be identified according to the process design and application data of the ultrasonic transducer, but this requirement is very understandable and experienced for the transducer data. Whether the design can be reasonably determined should be based on the selection of materials. The quality of the data indirectly affects the quality of the product. The same specifications of the origin of the data is not the same, the quality will vary greatly.

3. Parameter detection, whether the parameters of the ultrasonic transducer can be matched with the parameters of the electric box, can it reach the ideal effect.





40Khz 800w Ultrasonic Replacement Dukane Converter with Red Valve Body



800w Ultrasonic Welding Converter With Red Valve Body 40Khz 0





800w Ultrasonic Welding Converter With Red Valve Body 40Khz 1
