20Khz High Power Ultrasonic Transducer with BNC Connector For Welding Machine
  • name
  • name
  • name
  • name

20Khz High Power Ultrasonic Transducer with BNC Connector For Welding Machine

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D41S30
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
2000 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
11-18nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

high power ultrasonic transducer

Product Description

Replacement Dukane 41S30 20Khz Ultrasonic Converter for Welding Machine





Description:



This 20 KHz Ultrasonic Dukane 41S30 Converter uses the same piezo driver assembly as 110-3122 standard heavy duty transducer but has a sealed housing and a 24" cord terminating in a mil-spec connector to facilitate use in harsh environments or where the equipment must be hosed down for cleaning. The housing has fittings for 1/4" OD poly tubing to carry dry cooling air to and from the driver assembly. Can not be mounted in a standard Dukane press. Requires the use of 200-1233-10 ultrasound cable. Output thread is 1/2-20.





Specifications:



Model QR-D41S30
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-18nf
Amplitude 10 um
Application Plastic welding machine





Common Questions about ultrasonic transducers:



1. The ultrasonic vibrator is damp. You can check the plug connected to the transducer with a megger. Check the insulation resistance value to judge the basic situation. Generally, the insulation resistance is greater than 5 megohms. If the insulation resistance value is not reached, the transducer is generally damp. The whole transducer (excluding the sprayed plastic case) can be placed in the oven for about 3 hours at 100 °C or used to remove moisture to the resistance value. Normal until now.

2, the transducer vibrator is fired, the ceramic material is broken, and it can be combined with the naked eye and the megohmmeter. Generally, as an emergency treatment measure, the individual damaged vibrator can be disconnected without affecting the normal use of other vibrators.

3, vibrator degumming, our transducer is made of cement, screw fastening double guarantee process, under normal circumstances.

4, stainless steel vibrating surface perforation, the general transducer can be used for 10 years at full load, the vibrating surface perforation may occur.





Replacement Dukane 41S30 20Khz Ultrasonic Converter for Welding Machine

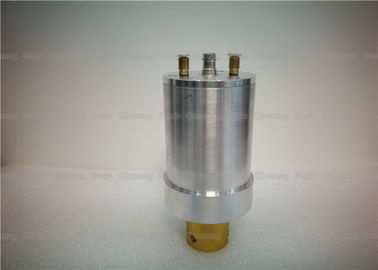

20Khz High Power Ultrasonic Transducer with BNC Connector For Welding Machine 0

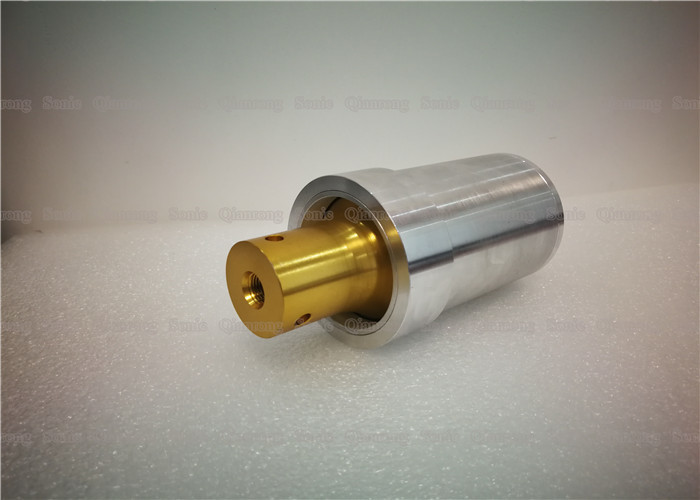

20Khz High Power Ultrasonic Transducer with BNC Connector For Welding Machine 1

Tags:

ultrasonic welding machine parts,

high power ultrasonic transducer,

ultrasonic converter
