| Products Name: | Ultrasonic Assisted Machining | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 100W | Generator: | Digital Generator |
| Speed: | 3000 R / Min Or Less | Matching Tool: | Carbide End Mill Head Φ2-Φ13; Disk Cutter Φ50 |
| Highlight: | ultrasonic assisted drilling,rotary ultrasonic machining |
||

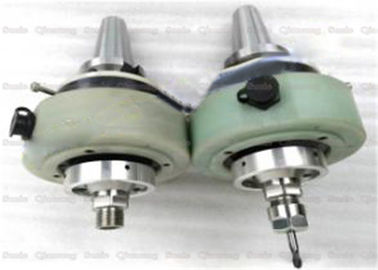

Silicon Machining by 20Khz Ultrasonic Rotary Drilling Equipment
Description:
The punching machine ultrasonic generator uses a parallel improved oscillator, that is, a Sile circuit, in the oscillating portion. By adjusting the inductance L1 and fine-tuning C1, an ultrasonic signal of a variable frequency of 17-23 kHz can be generated. W is the power level adjustment, and the output power can be monitored by the ammeter (A). The output signal is sent to a transducer made of piezoelectric ceramics, which converts ultrasonic energy into mechanical vibration energy. The shock head repeatedly vibrates under the cooperation of grinding powder (generally gold steel sand) and water, so that the processed portion wears through. Make a suitable hole
Specifications:
| Item No | QR-M20A |
| Power | 100W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V |
| Speed | 3000 r / min or less |
| Resonance point amplitude | 10um or more |
| Matching tool | carbide end mill head Φ2-Φ13; disk cutter Φ50 |
Application areas and locations:
Application areas: machining industry; machine tool equipment manufacturing industry;
Application place: manufacturing enterprise; colleges and universities; scientific research institutions; mechanical equipment transformation industry
Expansion and extension:
Adding an ultrasonic milling device to a common machine tool can effectively improve the service life of the tool and the surface quality of the workpiece; the addition of an ultrasonic milling device to the CNC machine tool can improve production efficiency.
It can be extended from milling to drilling, grinding and cutting.
Silicon Machining by 20Khz Ultrasonic Rotary Drilling Equipment
