Digital Ultrasonic Cutting Machine , Rubber Ultrasonic Cutting Device With Digital Generator

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in carton box
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-CR40D
Products Name:
Ultrasonic Cutter
Frequency:
40KHZ
Power:
800W
Generator:
Digital Generator
Voltage:
220V Or 110V
Generator Dimension:
380*250*150mm
Cutter Dimension:
72*82.5*25.5mm
Weight:
13kgs
Highlight:

ultrasonic slitting machine

,

ultrasonic cake cutting machine

Product Description

High Frequency 40Khz Ultrasonic Rubber Cutter with Digital Generator





Principle:



The principle of an ultrasonic rubber cutter is to convert a 50/60 Hz current into 20, 30 or 40 kHz of electrical energy by means of an ultrasonic generator. The converted high-frequency electrical energy is again converted by the transducer into mechanical vibration of the same frequency, and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulator devices that can change the amplitude. The ultrasonic rubber cutting blade vibrates along its length with an amplitude of 10-70 μm and repeats 40,000 times per second (40 kHz) (the vibration of the blade is microscopic and generally difficult to see by the naked eye). The cutting blade then transmits the received vibration energy to the cutting surface of the workpiece to be cut, in which the vibration energy is cut by activating the molecular energy of the rubber molecule and opening the molecular chain.





Specifications:



Item No QR-CR40D
Power 800W
Generator Digital generator
Frequency 40KHZ
Voltage 220V or 110V
Cutter Dimension 72*82.5*25.5mm
Generator Dimension 380*250*150mm
Gross weight 13Kg





Advantages:



  1. Advantages of ultrasonic tire rubber cutting

  2. High cutting precision, no deformation of rubber compound

  3. Good surface finish and good bonding performance

  4. Easy to apply to automated production

  5. Fast, efficient, non-polluting



Application:



Tire crown; nylon; steel strip plastic layer; nylon cord; inner lining; sidewall; apex; triangle ring, etc.; printed circuit board; natural fiber; synthetic fiber; non-woven fabric; thin synthetic resin; All forms of paper; base film; food (cake, sugar, meat).




High Frequency 40Khz Ultrasonic Rubber Cutter with Digital Generator

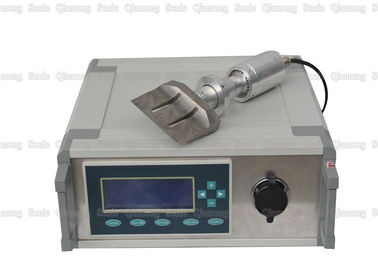

Digital Ultrasonic Cutting Machine , Rubber Ultrasonic Cutting Device With Digital Generator 0





Digital Ultrasonic Cutting Machine , Rubber Ultrasonic Cutting Device With Digital Generator 1
