High Power 20Khz Ultrasonic Welding Converter Ultrasonic Transducer For Food Cutting Blade
  • name
  • name
  • name
  • name

High Power 20Khz Ultrasonic Welding Converter Ultrasonic Transducer For Food Cutting Blade

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-BCJ20
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
3300 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
18-20nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

high power ultrasonic transducer

Product Description

High Power 20Khz Ultrasonic Transducer Replacement Branson CJ20 for Food Cutting Blade





Description:



Ultrasonic transducer is a device that converts electrical energy into mechanical energy. The device that converts electrical energy and acoustic energy by piezoelectric effect is called piezoelectric transducer. It consists of central piezoelectric ceramic component, front and rear metal cover, prestressing. The screw, the electrode piece and the insulating tube are composed. Depending on the design of the different structures, their form and performance are also greatly affected.



The influencing factors of the ultrasonic transducer are, in particular, the structure, the piezoelectric ceramics, the material matching and the manufacturing process. Moreover, if the thickness is different, then the electrical parameters of the transducer are significantly different. If it is used as a heat meter, then in terms of influencing factors, mainly piezoelectric ceramic materials and manufacturing processes.





Specifications:



Model QR-BCJ20
Frequency 20 khz
Output power 3300 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 18-20nf
Amplitude 10 um
Application Plastic welding machine





The reasons for the damage of the product parts after ultrasonic welding are as follows:


1). The ultrasonic welding machine is too powerful;
2). Conversely, in some cases, it is necessary to strengthen the energy of the ultrasonic wave so that the high-energy ultrasonic wave can be welded in the shortest possible time, and the short time is not enough to cause damage to the product structure;
3). The ultrasonic horn energy output is too strong;
4). The bottom mold fixture is suspended by the force point and is damaged by the ultrasonic conduction vibration;
5). The plastic product is high and thin at the right angle of the bottom, and there is no R angle for buffering the energy, which causes stress concentration and damage;
6). Incorrect ultrasonic processing conditions.
7). The column or weaker part of the plastic product is placed on the plastic mold parting line;





High Power 20Khz Ultrasonic Transducer Replacement Branson CJ20 for Food Cutting Blade

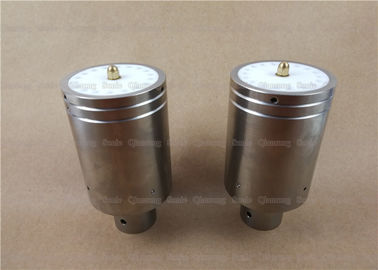

High Power 20Khz Ultrasonic Welding Converter Ultrasonic Transducer For Food Cutting Blade 0



High Power 20Khz Ultrasonic Welding Converter Ultrasonic Transducer For Food Cutting Blade 1

Tags:

ultrasonic welding machine parts,

high power ultrasonic transducer,

ultrasonic converter
