20 Khz Ultrasonic Booster Converter For Sonitek Branson Dukane Welders
  • name
  • name
  • name
  • name

20 Khz Ultrasonic Booster Converter For Sonitek Branson Dukane Welders

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-CJ20
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
3300 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
18-20nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

high power ultrasonic transducer

Product Description



20Khz Ultrasonic Booster Converter for Sonitek Branson Dukane Welders





Description:



The converter is aptly named because it receives electrical energy from the power supply and converts it into mechanical vibrations. Branson CJ-20 converter (101-135-059) replacement used in all 20KHz 2000, 2000X and DCX series IW, actuator and assembly stand systems that delivers rugged quality and superior value.



Ultrasonic transducers are devices that convert electrical energy into mechanical energy ultrasonic waves. The most mature and reliable device that converts electrical energy and acoustic energy by piezoelectric effect is called piezoelectric transducer.





Specifications:



Model QR-5020-CJ20
Frequency 20 khz
Output power 3300 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 18-20nf
Amplitude 10 um
Application Plastic welding machine





The reasons why the transducer is often bad are:



1. The power loss of the transducer itself is large, and the transducer needs to consume a certain amount of power when vibrating. This loss power directly reflects the quality and process of the transducer, and the power consumed by the transducer itself is as small as possible. The greater the loss power, the greater the damage. In severe cases, the piezoelectric ceramic is directly broken. The amount of power loss directly reflects the process and quality of the transducer.

2. The aluminum alloy horn of the transducer is fatigue fracture (affected by the material life), and the amplitude is large.

3. The piezoelectric ceramic piece of the transducer is broken (by the piezoelectric ceramic itself, the mechanical strength causes loss and heat, overload and high power output, loose)





20Khz Ultrasonic Booster Converter for Sonitek Branson Dukane Welders

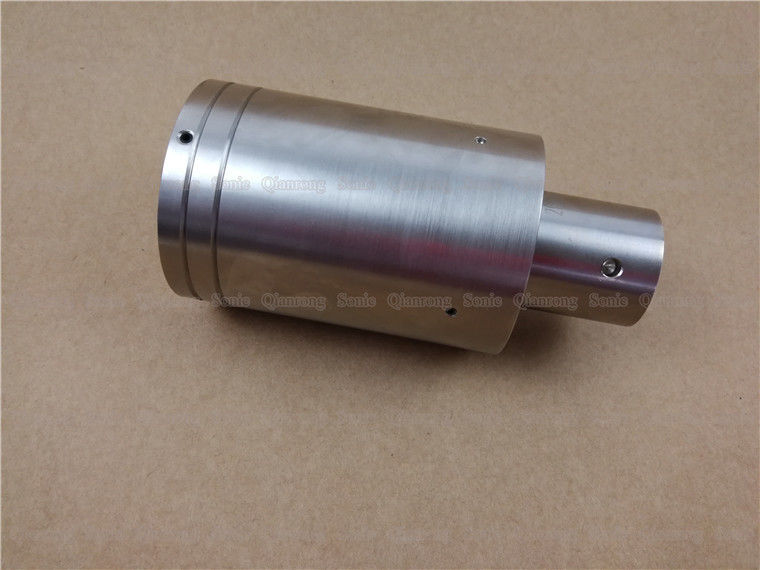

20 Khz Ultrasonic Booster Converter For Sonitek Branson Dukane Welders 0



20 Khz Ultrasonic Booster Converter For Sonitek Branson Dukane Welders 1
