Repairing Ultrasonic Welding Converter Heavy Duty 20 Khz Ultrasonic Transducer

Repairing Dukane Heavy Duty 110-3122 20Khz Plastic Welding Transducer

Description:

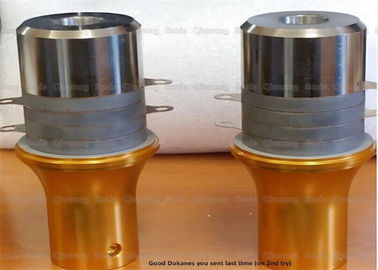

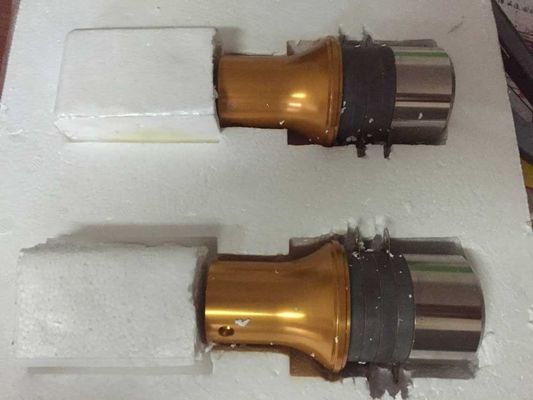

Replacement Dukane 20 kHz 110-3122 converter. Standard on Ultra Series systems heavy-duty series press and thruster systems utilizing model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster.

Ultrasonic transducers are devices that convert electrical energy into mechanical energy ultrasonic waves. The most mature and reliable device that converts electrical energy and acoustic energy by piezoelectric effect is called piezoelectric transducer.

It consists of a central piezoceramic component, a front and rear metal cover, a pre-stressed screw, an electrode pad and an insulating tube. The sandwich transducer bolt-on transducer produces stable ultrasonic waves when the load changes, and is the most basic and most important method for obtaining a power ultrasonic drive source. According to different designs, the ultrasonic transducers are mainly in the form of the same shape of the front and rear metal cover plates. The diameter of the inverted horn type front cover plate is excessively reduced by the arc type, the cylindrical steel back cover, and the column type has a section in the middle.

Specifications:

The difference between high frequency and ultrasound:

High frequency and ultrasonic are two different concepts. High frequency refers to electromagnetic waves with a frequency greater than 100Khz, and ultrasonic waves refers to sound waves with a frequency exceeding 20 kHz. The high-frequency welding principle and welding principle are different from those of ultrasonic waves. High-frequency electromagnetic waves use high-frequency electromagnetic fields to make the internal molecules collide with each other to produce high temperature to achieve welding and welding. Ultrasonic waves generate a large amount of heat by the principle of frictional heat generation. To achieve the purpose of welding and welding.

High-frequency applications are widely used, so there are high-frequency plastic welding machines, high-frequency plastic-plastic fuses, high-frequency folding box indenters, high-frequency embossing machines, and high-frequency heating machines.
