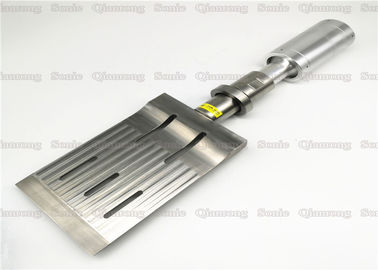

200mm Full Wavelength 20Khz Ultrasonic Cake Cutter For 100mm Height Cake

Customized Special 200mm Full Wavelength 20Khz Ultrasonic Cake Cutter for 100mm Height Cake

Description:

200mm width blade ultrasonic full wavelength food cutter was customized according to customer's production line and dimension of cake. Qianrong Ultrasonic equipment can accept customized with different requirements.

Ultrasonic cutting equipment Cake/food cutting knives are often used to cut the most common desserts and sweets, whether it is soft or contain fat, sugar, honey, cream or chocolate, which does not affect the uniformity of the food in any way. Ultrasonic cutters ensure clean cutting and precision.
The Qianrong ultrasound equipment provides complete professional equipment and components for ultrasonic food cutting. Compared with traditional cutting machines, ultrasonic food cutting knives have the characteristics of more sanitary cutting, shorter downtime, better cost-effectiveness, higher consistency of cutting surfaces and longer blade life.

Principle:

The principle of the ultrasonic cutter is to convert the 50/60hz current into 20khz, 30khz or 40khz by ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical vibration of the same frequency and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulator devices that can change the amplitude. The ultrasonic cutting blade vibrates along its length with an amplitude of 10-70 microns and repeats 20,000 times per second (20khz) (the vibration of the blade is microscopic, which is generally difficult to see by the naked eye). The cutting blade then transfers the received vibrational energy to the cutting face of the workpiece to be cut, in which the vibrational energy is cut by activating the molecular energy of the material and opening the molecular chain.

Specifications:

Advantage:

1. High stability: The ultrasonic generator generates electromagnetic vibration when it is working, and converts it into mechanical oscillation and transmits it to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is needed, and the blade wear is small, and at the same time The cutter head can be replaced by itself.

2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.

3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.

4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to 220V mains, and the switch can be cut to support hand-held and machine-mounted cutting.

Customized Special 200mm Full Wavelength 20Khz Ultrasonic Cake Cutter for 100mm Height Cake
