20Khz 902J Ultrasonic Converter For Branson IW Intergrated Benchtop Welders Using Actuator

MOQ:	1 pcs
Price:	Negotation
Standard Packaging:	Packed in carton
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-B902J

Products Name:

Ultrasonic Replacement Converter

Frequency:

20 Khz

Output Power:

900 Watt

Joint Bolt:

1/2-20UNF

Ceramic Disc Diameter:

Capacitance:

11-12nf

Amplitude:

Application:

Ultrasonic Plastic Welding Machine

Highlight:

ultrasonic converter

high power ultrasonic transducer

Product Description

20Khz Ultrasonic 902J Converter for Branson IW Intergrated Benchtop Welders Using Actuator

Description:

All of the components used in construction of these Branson 902J replacement converters are all new, not recovered from scrapped units. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part. The entire process is conducted in a ISO registered facility. Best of all, since the manufacturing process is so carefully controlled, durability is assured.

Replacement converter for Branson model 902J (101-135-047), for use with 910IW or IW+ intergrated benchtop welders or 905 or 910 D/M (500 and 1000 watt) power supplies using actuator or assembly stand units. These converters are made in a highly controlled and repeatable manner to duplicate the performance of the OEM models.

Specifications:

Model	QR-B902J
Frequency	20 khz
Output power	900 watt
Joint bolt	1/2-20UNF
Ceramic disc Diameter	50mm
Qty of ceramic discs	4pcs
Capacitance	11-12nf
Amplitude	10 um
Application	Plastic welding machine

Specification:

Item No	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Input Power	Machine
1-QR-BCJ20	1/2-20UNF	50	6	20	3300	Branson 2000 series
2-QR-BCR20	1/2-20UNF	50	6	20	3300	Branson 2000 series
3-QR-B502	1/2-20UNF	50	4	20	2000	Branson 5170, 8800
4-QR-B402	1/2-20UNF	40	4	20	900	Branson 8200, 8400
5-QR-B803	1/2-20UNF	50	4	20	2000	Branson 8700
6-QR-B902J	1/2-20UNF	50	4	20	900	Branson 910W or IW+
7-QR-B4TH	M8	25	4	40	800	40khz Branson welders
8-QR-B4TR	M8	25	4	40	800	40khz Branson welders
9-QR-D20	1/2-20UNF	50	2	20	2000	20khz Dukane Heavy Duty
10-QR-D41S30	1/2-20UNF	50	4	20	2000	Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30	1/2-20UNF	50	4	20	2000
12-QR-D110-3122	1/2-20UNF	50	4	20	2000
13-QR-D110-3168	1/2-20UNF	50	4	20	2000	Dukane Model 43B18
14-QR-D41C28	M8	35	2	40	800	40khz Dukane welders
15-QR-D41C29	M8	35	2	40	800	40khz Dukane welders
16-QR-R3510	M8	25	4	35	800	35Khz Rinco Welders
17-QR-R35	M8*1.25	25	2	35	500	35khz Rico Welders
18-QR-R20	1/2-20UNF	50	2	20	1200
19-QR-J3506	M8	25	4	35	800
20-QR-J3710	M8	25	4	37	500	CV231
21-QR-J3706-W1	M8	25	4	37	500
22-QR-J3706-W2	M8	32	2	37	400	CV3510
23-QR-T35	M8	25	4	35	800	35khz Telsonic Machine
24-QR-H20	1/2-20UNF	50	6	20	3000

Special Items can be customized.

20Khz Ultrasonic 902J Converter for Branson IW Intergrated Benchtop Welders Using Actuator

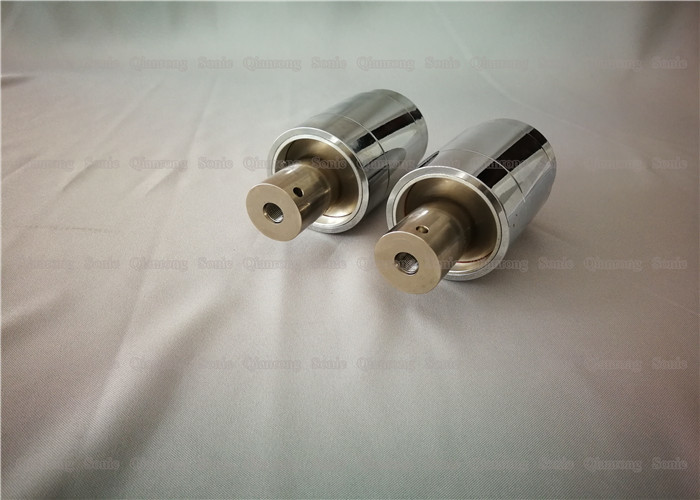

20Khz 902J Ultrasonic Converter For Branson IW Intergrated Benchtop Welders Using Actuator 0

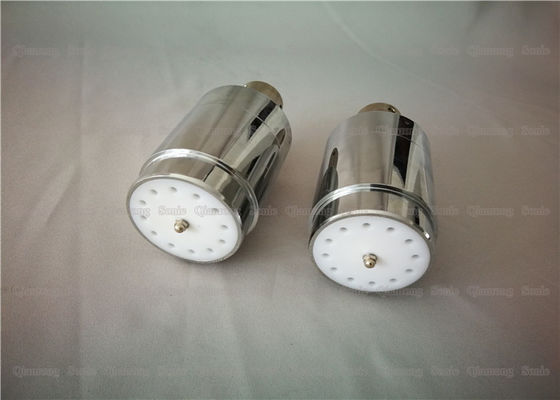

20Khz 902J Ultrasonic Converter For Branson IW Intergrated Benchtop Welders Using Actuator 1

20Khz 902J Ultrasonic Converter For Branson IW Intergrated Benchtop Welders Using Actuator 2
