Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-R35 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Replacement Converter | Frequency: | 35 Khz |
|---|---|---|---|
| Output Power: | 800 Watt | Joint Bolt: | M8 |
| Ceramic Disc Diameter: | 25mm | Capacitance: | 2.1-2.3nf |
| Amplitude: | 6um | Application: | Ultrasonic Plastic Welding Machine |
| Highlight: | ultrasonic converter,high power ultrasonic transducer |
||

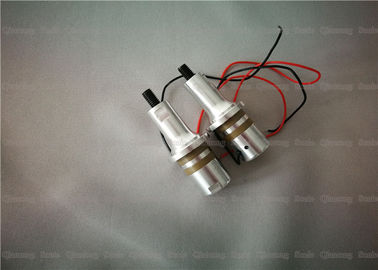

High Frequency 35Khz Replacement Rinco Converter for Ultrasonic Plastic Welding Machine
Description:
QRsonic Is the professional manufacturer of ultrasonic research, high power ultrasonic transducer development and production in China. Our main products are transducer, ultrasonic power supply, ultrasonic metal welder, ultrasonic wire antenna parts and so on.
QRsonic can supply replacement converter, such as Branson, Dukane, Rinco, Telsonic converters for different application.
According to different designs, the shape of the ultrasonic transducer mainly has a column type (the front and rear metal cover plates have the same diameter) and a horn type (the front cover plate diameter is excessively reduced by the arc shape).
Specifications:
| Model | QR-R35 |
| Frequency | 35 khz |
| Output power | 800 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 2.1-2.3nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 900 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
High Frequency 35Khz Replacement Rinco Converter for Ultrasonic Plastic Welding Machine
