Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-CF305Y |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 7workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 pcs per month |
| Products Name: | Ultrasonic Cutter | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 1000W | Generator: | Digital Generator |
| Voltage: | 220V Or 110V | Dimension Of Blade: | 305*254mm |
| Weight Of Blade: | 6kgs | Gross Weight: | 16kgs |
| Highlight: | ultrasonic slitting machine,ultrasonic cake cutting machine |
||

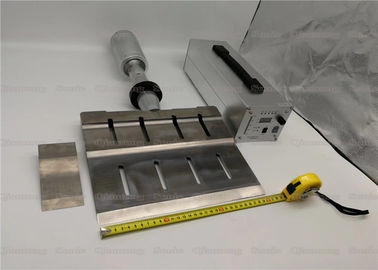

Customized 300mm Full Wavelength 20Khz Ultrasonic Cake Slicer with Digital Generator
Description:
300mm width blade ultrasonic full wavelength food cutter was customized according to customer's production line and dimension of cake. Qianrong Ultrasonic equipment can accept customized with different requirements.
Ultrasonic cutting equipment Cake/food cutting knives are often used to cut the most common desserts and sweets, whether it is soft or contain fat, sugar, honey, cream or chocolate, which does not affect the uniformity of the food in any way. Ultrasonic cutters ensure clean cutting and precision.
Specifications:
| Item No | QR-CF305Y |
| Power | 1000W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V or 110V |
| Cutter Dimension | 305*254mm |
| Weight of blade | 6kgs |
| Gross weight | 16Kgs |
Technical Parameters:
| Item No | QR-FC40Y | QR-FC255Y | QR-FC305Y | QR-FC355Y |
| Frequency | 40Khz | 20Khz | 20Khz | 20Khz |
| Power | 800w | 2000w | 2000w | 2000w |
| Generator | Digital generator | Digital generator | Digital generator | Digital generator |
| Voltage | 110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V |
| Width of blade | 82.5mm | 255mm | 305mm | 355mm |
| Material of Blade | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
| Gross weight | 10kgs | 15kgs | 16kgs | 18kgs |
Advantage:
1. High stability: The ultrasonic generator generates electromagnetic vibration when it is working, and converts it into mechanical oscillation and transmits it to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is needed, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to 220V mains, and the switch can be cut to support hand-held and machine-mounted cutting.
Customized 300mm Full Wavelength 20Khz Ultrasonic Cake Slicer with Digital Generator
