Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter

Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-CJ20
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
3300 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
18-20nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

high power ultrasonic transducer

Product Description



Exquisite High Imitation Transducer with Metal Sheel Branson Replacement CJ20 Converter





Description:



Ultrasonic transducer is a device that realizes the conversion of electrical, mechanical or acoustic energy from one form of energy to another form of energy. It is called a transducer, also called an active transducer.The more mature and reliable one is the piezoelectric effect. The device that realizes the conversion of electrical energy and acoustic energy is also called a piezoelectric transducer. The transducer produced by our company adopts imported piezoelectric ceramics and titanium alloy variable rods. The main features are high efficiency: the board has a high quality factor, and it can work at the resonance frequency to obtain extremely high electroacoustic conversion efficiency. The amplitude is large: the structure optimized by the computer has a high vibration speed ratio, a large front cover vibration, and a large power: Under the action of the prestressed rod, the energy of the ceramic sheet is maximized and the heat is good: the transducer has a small impedance, a small amount of heat, a wide temperature range, and high reliability and long life.





Specifications:



Model QR-5020-CJ20
Frequency 20 khz
Output power 3300 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 18-20nf
Amplitude 10 um
Application Plastic welding machine





Specification:



Item No

Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



Resonance frequency (khz)



Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series

2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series

3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800

4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400

5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700

6-QR-B902J 1/2-20UNF 50 4 20 900

Branson

910W or IW+

7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.





Exquisite High Imitation Transducer with Metal Sheel Branson Replacement CJ20 Converter

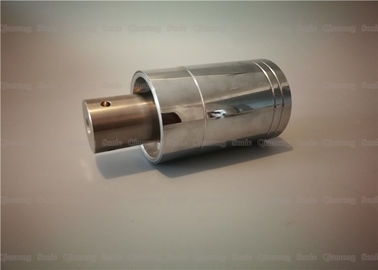

Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter 0

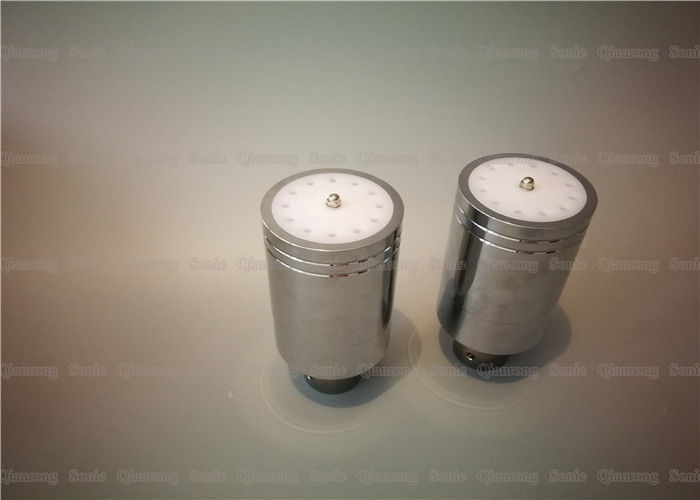

Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter 1
