Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-T35 |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in carton |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs per month |
Products Name: | Ultrasonic Replacement Konverter | Frequency: | 35 Khz |
---|---|---|---|
Output Power: | 1200 Watt | Joint Bolt: | M8 |
Ceramic Disc Diameter: | 25mm | Capacitance: | 2100-2300pf |
Amplitude: | 6um | Application: | Ultrasonic Cutter |
Highlight: | 35khz ultrasonic cutting transducer,35khz ultrasound cutting transducer,replacement telsonic ultrasound cutting transducer |

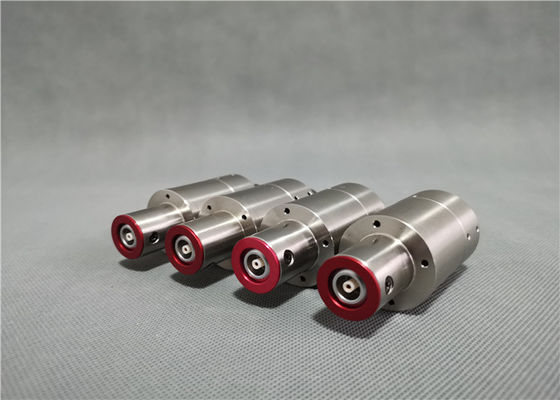

Replacement Telsonic 35Khz Ultrasound Cutting Transducer for Ultra Cutter
Description:
QRsonic adopts QM value, technical strength, low strong field loss, high power density, low mechanical dielectric loss, high piezoelectric coupling coefficient, stable performance piezoelectric ceramic sheet, through the precise structure design, and the parameters of the ceramic sheet are highly consistent. Accurate, corrosion-resistant, non-rusting, 62 phosphor copper with excellent conductivity, assembled into an ultrasonic transducer with strong stability and long service life.
Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.
Specifications:
Model | QR-T35 |
Frequency | 35 khz |
Output power | 1200 watt |
Joint bolt | M8 |
Ceramic disc Diameter | 25mm |
Qty of ceramic discs | 4pcs |
Capacitance | 2100-2300pf |
Amplitude | 6 um |
Application | Ultrasonic Cutter |
Specification:
Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
The reasons why the transducer is often bad are:
1. The power loss of the transducer itself is large, and the transducer needs to consume a certain amount of power when vibrating. This loss power directly reflects the quality and process of the transducer, and the power consumed by the transducer itself is as small as possible. The greater the loss power, the greater the damage. In severe cases, the piezoelectric ceramic is directly broken. The amount of power loss directly reflects the process and quality of the transducer.
2. The aluminum alloy horn of the transducer is fatigue fracture (affected by the material life), and the amplitude is large.
3. The piezoelectric ceramic piece of the transducer is broken (by the piezoelectric ceramic itself, the mechanical strength causes loss and heat, overload and high power output, loose)
