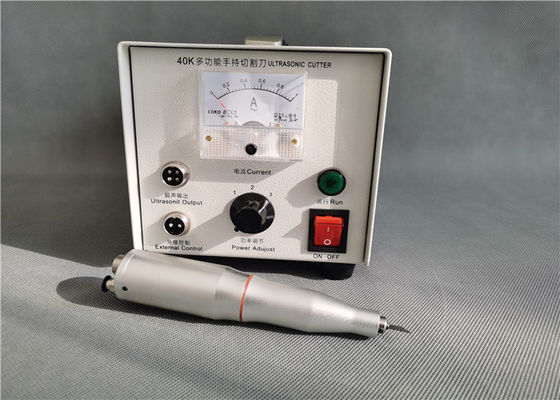

40khz Portable Ultrasonic Fabric Cutter For Nonwoven Mask Cutting And Sealing

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in carton box
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-C40A
Products Name:
Ultrasonic Fabric Cutter
Frequency:
40Khz
Power:
100W
Generator:
Analog Generator
Voltage:
220V
Handle Dimension:
Φ32*170
Generator Dimension:
155*265*170mm
Replacement Blade:
25pcs
Weight:
5kgs
Application:
Fabric Materials Cutting
Highlight:

portable ultrasonic fabric cutter

,

40khz ultrasonic fabric cutter

,

ultrasonic 40khz fabric cutter

Product Description

40Khz Portable Ultarsonic Fabric Cutter for Non- Woven Mask Cutting and Sealing





Description:



40Khz ultrasonic cutting machine is a kind of equipment that uses ultrasonic energy for cutting and processing. Its biggest feature is that cutting does not require cutting edges. The principle of ultrasonic cutting is to convert 50/60Hz current into 40KHz electric energy through an ultrasonic generator. It is converted into mechanical vibration of the same frequency, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator device that can change the amplitude. The cutting knife transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the fabric by activating the molecular energy of the fabric and opening the molecular chain.





Specifications:



Item No QR-C40A
Power 100W
Generator Analog generator
Frequency 40KHZ
Voltage 220V or 110V
Handle Dimension Φ32*170
Generator Dimension 155*265*170mm
Gross weight 5Kg
Replacement blade 25pcs





Features:



1. Labor-saving, specially designed processing strength is more than the same level products, reducing the operator's effort.

2. Time-saving, high-speed vibration of 30,000 times per second, self-control of output, higher efficiency

3. Power-saving, original and powerful, power-saving mode, the knife handle is not easy to get hot, to meet various work requirements.

4. Stronger, the front end adopts a clamping tool, the blade grip is strong and even.

5. More beautiful, with the help of ultrasonic vibration, the cut surface is beautiful and neat

6. Safer, automatic detection system, warning when failure





40Khz Portable Ultarsonic Fabric Cutter for Non- Woven Mask Cutting and Sealing

40khz Portable Ultrasonic Fabric Cutter For Nonwoven Mask Cutting And Sealing 0

40khz Portable Ultrasonic Fabric Cutter For Nonwoven Mask Cutting And Sealing 1
