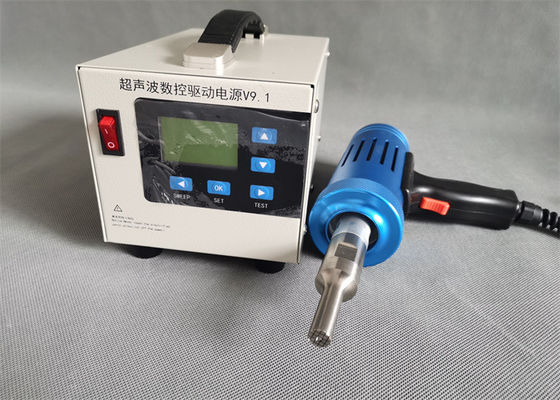

800Watt 28Khz Aluminum Head Ultrasonic Spot Welding Machine For Car

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W28GD
Products Name:
Ultrasonic Handheld Welder
Frequency:
28Khz
Power:
800w
Generator:
Digital Generator
Welding Head:
Aluminum Or Titanium
Net Weight:
5kgs
Highlight:

800Watt Ultrasonic Spot Welding Machine

,

28k Ultrasonic Spot Welder

,

Aluminum Ultrasonic Spot Welding Machine

Product Description

Mobility Newest 28Khz Ultrasonic Spot Welding Equipment for Car


Description:

The principle of 28khz Ultrasonic spot welder is to convert 50/60 Hz current into 28kHz electric energy through ultrasonic generator. Ultrasonic welding machine principle, fast, economical, efficient, environmentally friendly welding process, especially in the operation of thermoplastic parts and other workpieces, especially highlighting the efficiency of the work, the current principle of ultrasonic welding machine is widely used in The synthesis of plastic products and plastic materials, the synthesis of metal parts and metal materials, as well as other materials and industrial and process operations.


 The hand-held ultrasonic spot welder can be used for the welding, riveting, spot welding of the film, fabric, thermoplastic products and the inlaying and blanking process between the metal parts and the plastic parts.

When ultrasonic waves are applied to the surface of a thermoplastic, high-frequency vibrations of tens of thousands of times per second are generated, and ultrasonic energy is transmitted to the weld zone through the weldment, which causes local high temperatures. Due to the poor thermal conductivity of the plastic, heat is concentrated in the weld zone, causing the plastic surface to melt rapidly, and after a certain pressure, it is integrated into one.





Specifications:



Item No QR-W28GD
Power 800W
Generator Digital generator
Frequency 28KHZ
Voltage 220V or 110V
welding head Aluminum or Titanium
Net weight 5Kgs




Parameters:



Classification Pistol Type Pen Type

Frequency
(Khz)

 35 28 28 28 20 28 28 28
Power(w) 500 300 700 800 900 300 700 800
Welding Head <10mm <10mm <10mm <12mm <12mm <10mm <10mm <12mm
Dia of shell 51mm 51mm 51mm 64mm 64mm 40mm 45mm 60mm
The handles size 100mm*45mm*32mm — — —
Weight 0.5kg 0.5kg 0.5kg 1.2kg 1.2kg 0.4kg 0.5kg 1.0kg
Digital Generator ● - ● ● ● ● - ●
Analog Generator ● ● ● ● ● ● ● ●
Application ABS, HIPS,PMMA,MPPO PVC,PP,PE Aldehyde-resin, PC PC,PSU,PA Nylon, PE,PBT PVC,PP,PE Aldehyde-resin, PC

PC,
PSU,PA
Welding Type Rivet Welding, Spot Welding, Embossed Welding





Mobility Newest 28Khz Ultrasonic Spot Welding Equipment for Car

800Watt 28Khz Aluminum Head Ultrasonic Spot Welding Machine For Car 0

800Watt 28Khz Aluminum Head Ultrasonic Spot Welding Machine For Car 1
