Branson CJ20 Replacement Ultrasound Converter For 2000 Series Plastic Welder

MOQ:	1 pcs
Price:	Negotation
Standard Packaging:	Packed in carton
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-5020-CJ20

Products Name:

Ultrasonic Replacement Branson Converter

Frequency:

20 Khz

Output Power:

3300 Watt

Joint Bolt:

1/2-20UNF

Ceramic Disc Diameter:

Capacitance:

18-20nf

Qty Of Ceramics:

Application:

Ultrasonic Plastic Welding Machine

Highlight:

Branson CJ20 Replacement Ultrasound Converter

2000 Series Plastic Welder Ultrasound Converter

Product Description

Branson CJ20 Replacement Ultrasound Converter for 2000 Series Plastic Welder

Description:

Ultrasonic transducer is a device that realizes mutual conversion between electric energy and sound energy by piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic element, front and rear metal cover plates, pre-stressed screws, electrode sheets, and insulating tubes. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong Ultrasonic Equipment is the source manufacturer of ultrasonic titanium alloy transducers and core components.

The converter is aptly named because it receives electrical energy from the power supply and converts it into mechanical vibrations. Branson CJ-20 converter (101-135-059) replacement used in all 20KHz 2000, 2000X and DCX series IW, actuator and assembly stand systems that delivers rugged quality and superior value.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters. QRsonic can supply ultrasonic transducer according to customer's requirements.

Specifications:

Model	QR-5020-CJ20
Frequency	20 khz
Output power	3300 watt
Joint bolt	1/2-20UNF
Ceramic disc Diameter	50mm
Qty of ceramic discs	6pcs
Capacitance	18-20nf
Amplitude	10 um
Application	Plastic welding machine

Specification:

Item No	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Input Power	Machine
1-QR-BCJ20	1/2-20UNF	50	6	20	3300	Branson 2000 series
2-QR-BCR20	1/2-20UNF	50	6	20	3300	Branson 2000 series
3-QR-B502	1/2-20UNF	50	4	20	2000	Branson 5170, 8800
4-QR-B402	1/2-20UNF	40	4	20	900	Branson 8200, 8400
5-QR-B803	1/2-20UNF	50	4	20	2000	Branson 8700
6-QR-B902J	1/2-20UNF	50	4	20	900	Branson 910W or IW+
7-QR-B4TH	M8	25	4	40	800	40khz Branson welders
8-QR-B4TR	M8	25	4	40	800	40khz Branson welders
9-QR-D20	1/2-20UNF	50	2	20	2000	20khz Dukane Heavy Duty
10-QR-D41S30	1/2-20UNF	50	4	20	2000	Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30	1/2-20UNF	50	4	20	2000
12-QR-D110-3122	1/2-20UNF	50	4	20	2000
13-QR-D110-3168	1/2-20UNF	50	4	20	2000	Dukane Model 43B18
14-QR-D41C28	M8	35	2	40	800	40khz Dukane welders
15-QR-D41C29	M8	35	2	40	800	40khz Dukane welders
16-QR-R3510	M8	25	4	35	800	35Khz Rinco Welders
17-QR-R35	M8*1.25	25	2	35	500	35khz Rico Welders
18-QR-R20	1/2-20UNF	50	2	20	1200
19-QR-J3506	M8	25	4	35	800
20-QR-J3710	M8	25	4	37	500	CV231
21-QR-J3706-W1	M8	25	4	37	500
22-QR-J3706-W2	M8	32	2	37	400	CV3510
23-QR-T35	M8	25	4	35	800	35khz Telsonic Machine
24-QR-H20	1/2-20UNF	50	6	20	3000

Special Items can be customized.

Branson CJ20 Replacement Ultrasound Converter for 2000 Series Plastic Welder

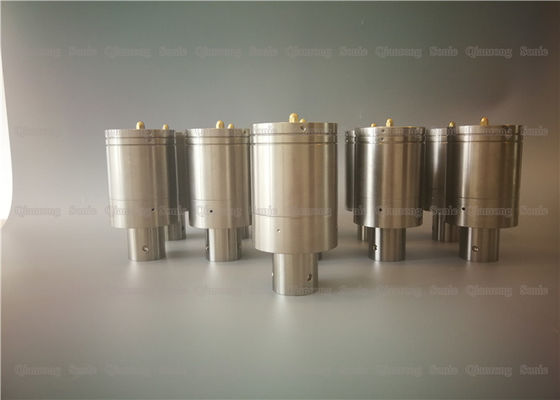

Branson CJ20 Replacement Ultrasound Converter For 2000 Series Plastic Welder 0

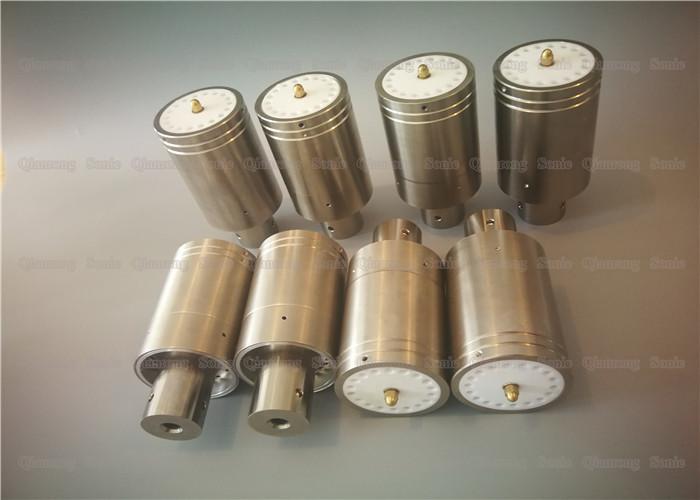

Branson CJ20 Replacement Ultrasound Converter For 2000 Series Plastic Welder 1
