Combination Transducer 35Khz Ultrasound Cutter Sonotrode Knife

Combination Transducer 35Khz Ultrasound Cutter Sonotrode Knife

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in carton box
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-C35Y
Products Name:
Ultrasonic Material Cutter
Frequency:
35Khz
Power:
100W
Generator:
Digital Power Driver
Voltage:
220V Or 110V
Weight Of Cutter:
0.5kgs
Gross Weight:
5kgs
Application:
Various Composite Materials
Highlight:

35Khz Ultrasound Cutter

,

Combination Transducer Ultrasound Cutter

,

Sonotrode Knife Ultrasonic Cutting Machine

Product Description

35Khz Ultrasound Cutter Combination Transducer Sonotrode Knife



Description:



The basic structure of the ultrasonic cutter is an ultrasonic transducer, Sonotrode, knife, and a driving power source.

Ultrasonic cutting knife, also known as ultrasonic cutting machine, is a kind of ultrasonic equipment specially used for cutting, and it is one of the important categories of ultrasonic applications. The principle of ultrasonic cutting is completely different from traditional cutting. Ultrasonic cutting uses the energy of an ultrasonic transducer to heat and melt a part of the material to be cut, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and will not cause chipping or damage to the material being cut. At the same time, because the cutting knife is doing ultrasonic vibration, the friction resistance is very small, and the material to be cut is not easy to stick to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.



Specifications:



Item No QR-C35Y
Power 100W
Generator Digital generator
Frequency 35KHZ
Voltage 220V or 110V
Replacement Blade 1pcs
Weight of blade 0.35kgs
Gross weight 5Kg
Application  Various Fabric Materials





Advantages of ultrasonic cutting knife:



1. Air-cooled and water-cooled designs can be adopted to adapt to various working conditions and environments

2. The cutting speed is greatly improved, and the efficiency is more than 10 times higher than that of the traditional cutting knife

3. Use high-power ultrasonic transducer as the vibrating element to ensure stable work for a long time

4. The variety of cutting knives is complete, and cutting knives with relevant shapes can also be customized according to customer processes

5. It can cut all kinds of products that are difficult to cut by ordinary tools, and solve the production and processing problems

6. High hardness blades can be installed, and the cutting blades can be replaced, which reduces the cost of use

7. Easy to install and use, hardly changing the original cutting process

8. High cutting precision, good cut surface finish





35Khz Ultrasound Cutter Combination Transducer Sonotrode Knife

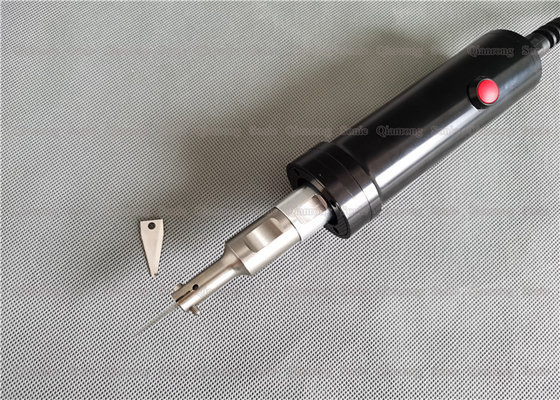

Combination Transducer 35Khz Ultrasound Cutter Sonotrode Knife 0



Combination Transducer 35Khz Ultrasound Cutter Sonotrode Knife 1
