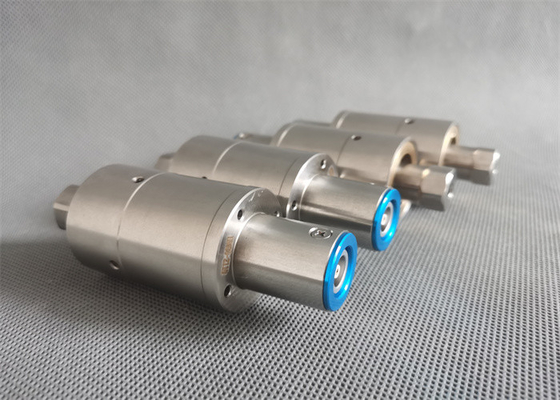

35Khz Ultrasonic Welding Converter For Replacing Telsonic Transducer
  • name
  • name
  • name
  • name

35Khz Ultrasonic Welding Converter For Replacing Telsonic Transducer

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-T35
Products Name:
Ultrasonic Replacement Converter
Frequency:
35 Khz
Output Power:
1200 Watt
Joint Bolt:
M8
Ceramic Disc Diameter:
25mm
Capacitance:
2.1-2.3nf
Amplitude:
6um
Application:
Replacing Telsonic Transducer
Highlight:

Telsonic Transducer Ultrasonic Welding Converter

,

35Khz Ultrasonic Welding Converter

,

M8 Joint Bolt Ultrasonic Welding Converter

Product Description

35Khz Ultrsound Replacement Converter Matching Telsonic Generator



Description:



According to the parameters of Telsonic original transducer, it is matched with Telsonic electric box. QRsonic uses high-quality, high-consistency piezoelectric ceramics, designed according to the original structure, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, continuous wave Characteristics.

Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.





Specifications:



Model QR-T35
Frequency 35 khz
Output power 1000 watt
Joint bolt M8
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 2.1-2.3nf
Amplitude 6 um
Application Plastic welding machine





Specification:



Item No

Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



Resonance frequency (khz)



 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 2000

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.





Ultrasonic transducer production process:


The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction. The Cymbal array receiver consists of 8-16 Cymbal transducers, two metal rings and rubber washers.
1. Blow dry with a hot air gun
2. Place the electrode sheet first
3. Ceramics, electrode sheets, ceramics
4. Back cover, screws
5. Positioning
6. Afterburner
7. Glue
8. Put the oven
9. Test with a testing machine
10. Pouring
11. Test again before packing





35Khz Ultrsound Replacement Converter Matching Telsonic Generator



35Khz Ultrasonic Welding Converter For Replacing Telsonic Transducer 0



35Khz Ultrasonic Welding Converter For Replacing Telsonic Transducer 1
