Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-WD20QS |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in wooden case |
Delivery Time: | 7 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Digital Generator | Frequency: | 20KHZ |
---|---|---|---|
Power: | 2500W | Voltage: | 220V Or 110V |
Generator: | Digital Power Supply | Application: | Sewing Welding Machine |
Highlight: | PLC Automation Ultrasonic Welding Generator,2500W Ultrasonic Welding Generator,20Khz Ultrasonic Digital Generator |

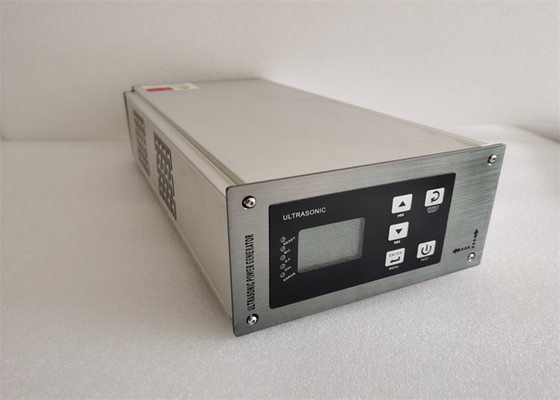

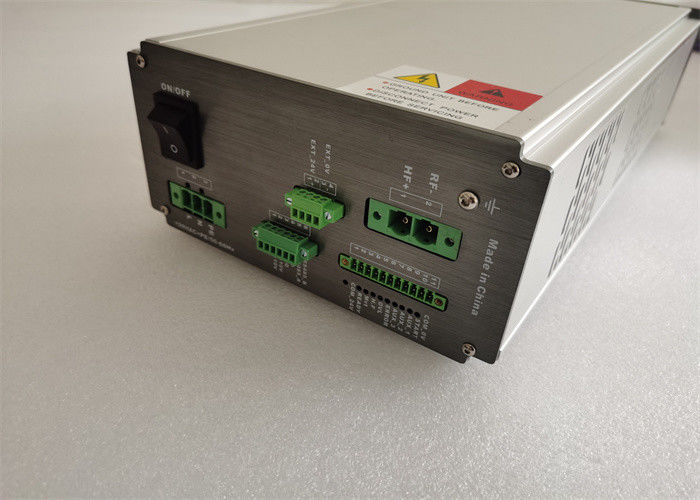

High Power Ultrasonic Welding Generator 20Khz Digital Welding Oscillator
Description:
QRsonic ltrasonic's new digital ultrasonic power generator uses a 4-core 32-bit processor to apply the 485 communication protocol. It has three welding modes of time, energy and grounding; it can automatically track and display real-time frequency, with amplitude stepping function, welding amplitude range up to 10-100 (1% accuracy). There is also amplitude compensation to control your weld quality in real time. There are also transducer voltage protection, mold impedance analysis and protection, power supply input voltage and power overload protection to protect your equipment. Powerful, high quality and high welding stability. Equipped with a variety of output interfaces and expansion functions, it can be widely used in plastics, metal welding, cutting, industrial cleaning, PLC automation.
Specifications:
Item No | QR-WD20QS |
Power | 2500W |
Generator | Digital generator |
Frequency | 20KHZ |
Voltage | 220V or 110V |
Size | 400*195*100mm |
Application | Plastic Welding Machine |
Net weight | 7Kg |
Advantages of the intelligent ultrasonic generator:
1. The ultrasonic generator can monitor the operating frequency and power of the high-power ultrasonic system.
2. It can adjust various parameters in real time according to different requirements of users: power, amplitude, running time, etc.
3. Frequency fine-tuning: Adjust the frequency so that the ultrasonic transducer always works at its optimum state, and the efficiency is maximized, and the adjustment range is 2%.
4. Automatic follow-up: Once the device has been initially set up, it can be operated continuously without the need to adjust the generator.
5. Amplitude control: When the load changes during the operation of the transducer, the drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
6. System protection: When the system works in an unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.
7. Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the working process. The amplitude setting range is 50%~100%.
8. Automatic search frequency: The working frequency of the tool head can be automatically determined and stored.
High Power Ultrasonic Welding Generator 20Khz Digital Welding Oscillator
