Self Configurable Ultrasonic Frequency Generator 28Khz For Spot Welder
  • name
  • name
  • name
  • name

Self Configurable Ultrasonic Frequency Generator 28Khz For Spot Welder

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-WA28C
Products Name:
Ultrasonic Power Supply
Frequency:
28KHZ
Power:
1200W
Voltage:
220V Or 110V
Generator:
Analog Generator
Application:
Ultrasonic Spot Welder
Highlight:

Self Configurable Ultrasonic Frequency Generator

,

28Khz Ultrasonic Frequency Generator

Product Description

Self-Configurable Ultrasonic Frequency Generator for 28Khz Ultra Sonotrode for Spot Welder





Description:



28K ultrasonic spot welding system has a novel portable structure design, which is quick and convenient to operate and move. It is also equipped with a fully automatic tracking system, no need to manually tune the frequency. Strong power, up to 1200 watts, can work continuously or pulsed, especially suitable for the melting point of 1-15mm in diameter. Unique value design, compact and light, suitable for operation.

Ultrasonic generators, also known as ultrasonic power supplies, electronic boxes, and ultrasonic controllers, are important components of high-power ultrasound systems. The ultrasonic generator is divided into an analog generator and a numerical control generator.





Specifications:



Item No QR-WA28C
Power 1200W
Generator Analog generator
Frequency 28KHZ
Voltage 220V or 110V
Size 430*250*2000mm
Application Ultrasonic Spot Machine
Net weight 8Kg





Ultrasonic equipment features:


1. It can be welded through dirt, and the welding is firm and the sealing is good.
2. Exquisite appearance, no flash
3. The welding process is clean and pollution-free
4. The processed products are environmentally friendly and renewable
5. Fast and cost-effective, the entire welding process can be completed in a few milliseconds
6. No need to use auxiliary materials such as adhesives
7. The operation process does not require preheating and heat preservation, and it is easy to use





Self-Configurable Ultrasonic Frequency Generator for 28Khz Ultra Sonotrode for Spot Welder

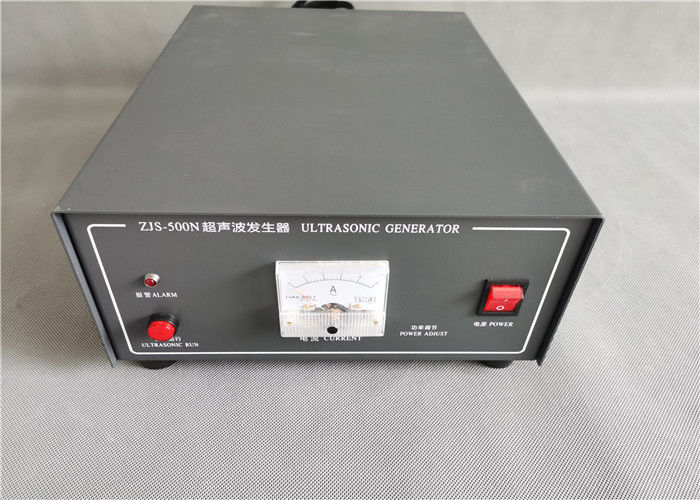

Self Configurable Ultrasonic Frequency Generator 28Khz For Spot Welder 0

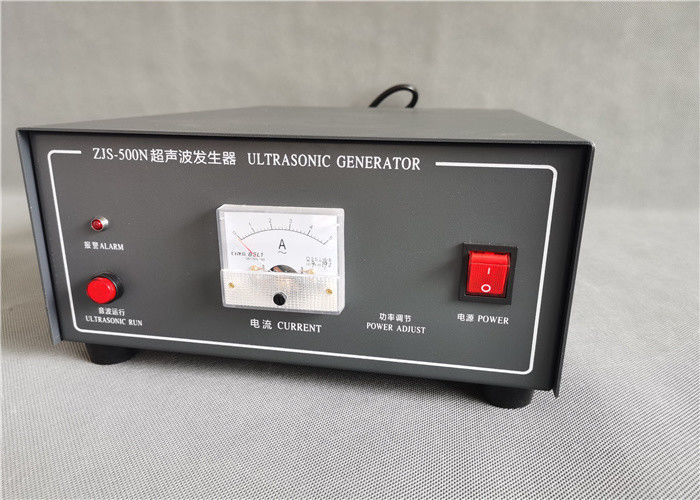

Self Configurable Ultrasonic Frequency Generator 28Khz For Spot Welder 1

Tags:

ultrasonic sound wave generating device,

ultrasonic signal generator,

ultrasonic frequency generator
