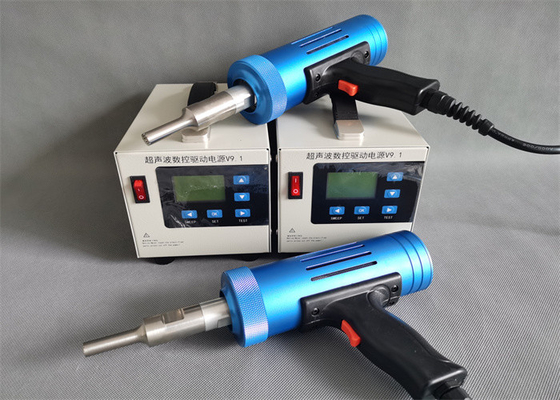

Digital 28khz Ultrasonic Spot Welder 1200w Titanium Aluminum Head

MOQ:	1 unit
Price:	Negotation
Standard Packaging:	packed in wooden case
Delivery Period:	7 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-W28AY

Products Name:

Ultrasonic Spot Welder

Frequency:

28Khz

Power:

1200w

Generator:

Digital Generator

Welding Head:

Aluminum Or Titanium

Application:

Various Plastic Materials Welding

Highlight:

Aluminum Head Ultrasonic Spot Welder

1200w 28khz Ultrasonic Spot Welder

Titanium 28khz Ultrasonic Spot Welder

Product Description

Cheap Ultrasonic Welder with Digital 28Khz Frequency Tracking Adjusting System

Description:

Ultrasonic handheld spot welding adopts straight-handle or pistol design, which is more convenient to operate. The welding effect is controlled manually, which is easy to operate and does not require the use of cylinder pressure. The piezoelectric ceramic transducer is specially used, and the output is stable and strong. The electric box adopts an automatic compensation circuit, which can freely adjust the power to achieve a uniform spot welding effect.

Specifications:

Item No	QR-W28AY
Power	800W
Generator	Digital generator
Frequency	28KHZ
Voltage	220V or 110V
welding head	Aluminum or Titanium
Gross weight	6Kg

Parameters:

Classification	Pistol Type					Pen Type
Frequency (Khz)	35	28	28	28	20	28	28	28
Power(w)	500	300	700	800	900	300	700	800
Welding Head	<10mm	<10mm	<10mm	<12mm	<12mm	<10mm	<10mm	<12mm
Dia of shell	51mm	51mm	51mm	64mm	64mm	40mm	45mm	60mm
The handles size	100mm45mm32mm					—	—	—
Weight	0.5kg	0.5kg	0.5kg	1.2kg	1.2kg	0.4kg	0.5kg	1.0kg
Digital Generator	●	-	●	●	●	●	-	●
Analog Generator	●	●	●	●	●	●	●	●
Application	ABS, HIPS,PMMA,MPPO	PVC,PP,PE	Aldehyde-resin, PC	PC,PSU,PA	Nylon, PE,PBT	PVC,PP,PE	Aldehyde-resin, PC	PC, PSU,PA
Welding Type	Rivet Welding, Spot Welding, Embossed Welding

Main features:

Product design is compact, beautiful in appearance, stable in work, and easy to install
It can be used for welding and riveting of thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts. Has completely replaced the organic melting point agent paste process. It has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, firm welding, and convenient operation.
It can be used not only for welding metals, hard thermoplastics, but also for processing fabrics and films. The handheld ultrasonic welding gun can replace different ultrasonic welding heads according to the size of the riveting point and welding requirements of the product to be welded. It is fast and convenient, and the cost is much lower than that of a special ultrasonic welding machine for automobile door panels, which is convenient to meet the needs of different customers. need.

Application range:

Electronic appliances, auto parts, clothing packaging, textile industry, environmental protection industry, medical equipment, toy industry, communication equipment and other industries.

Plastic hardware riveting, spot welding, embossing, folder positioning and other processes, decoration, ribbon flower spot welding, riveting, etc.

Cheap Ultrasonic Welder with Digital 28Khz Frequency Tracking Adjusting System

Digital 28khz Ultrasonic Spot Welder 1200w Titanium Aluminum Head 0

Digital 28khz Ultrasonic Spot Welder 1200w Titanium Aluminum Head 1
