Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-FC35H |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | packed in carton box |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Cutter | Frequency: | 35KHZ |
---|---|---|---|
Power: | 800W | Generator: | Digital Generator |
Voltage: | 220V Or 110V | Cutter Dimension: | 82.5mm |
Weight Of Blade: | 1.5kgs | Gross Weight: | 8kgs |
Highlight: | 82.5mm Ultrasonic Cutting Machine,Customized Blade Width Ultrasonic Cutter,Rubber Ultrasonic Fabric Cutter |

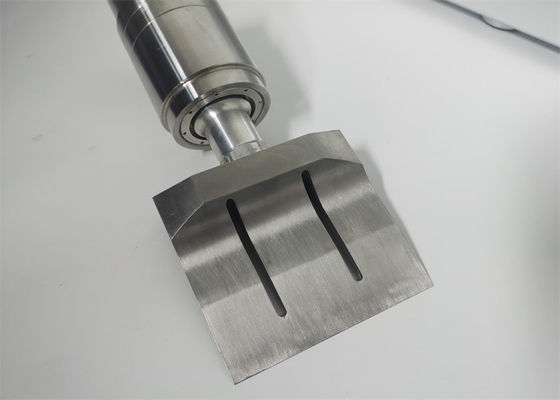

82.5mm Customized Blade Width for 35Khz Ultrasonic Fabric Rubber Cutter
Description:
35Khz Ultrasonic cutting uses the energy of ultrasonic waves to melt the localized heat of the material to be cut, so that it does not require a sharp edge. The principle of ultrasonic rubber cutting knives is quite different from the traditional pressure cutting.
Ultrasonic cutters can be used to cut thermoplastic resin sheets, sheets, films and laminates, carbon fiber composites, polyethylene fibers, molded articles containing carbon or glass fibers, rubber, vulcanized latex, non-vulcanized latex and food.
QRsonic ultrasonic food cutting knives are often used to cut the most common desserts and candies, whether it is soft or contain fat, sugar, honey, cream or chocolate, which does not affect the uniformity of the food in any way.
Specifications:
Item No | QR-FC35H |
Power | 800W |
Generator | Digital generator |
Frequency | 35KHZ |
Voltage | 220V or 110V |
Cutter Dimension | 82.5mm |
Weight of blade | 1.5kgs |
Gross weight | 8Kgs |
Technical Parameters:
Item No | QR-FC40Y | QR-FC35H | QR-FC255Y | QR-FC305Y | QR-FC355Y |
Frequency | 40khz | 35khz | 20khz | 20khz | 20khz |
Power | 800w | 800w | 2000w | 2000w | 2000w |
Generator | digital generator | digital generator | digital generator | digital generator | digital generator |
Voltage | 110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V |
Width of Blade | 82.5mm | 82.5mm | 255mm | 305mm | 355mm |
Material of blade | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Gross weight | 10kgs | 8kgs | 15kgs | 16kgs | 18kgs |
Comparison between Traditional Cutter and Ultrasonic Cutter:
Traditional Cutter | Ultrasonic Cutter |
A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
