Analog Generator 40Khz Ultrasound Cutter With Smooth Cutting Edge

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in carton box
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-C40A
Products Name:
Ultrasonic Fabric Cutter
Frequency:
40Khz
Power:
100W
Generator:
Analog Generator
Voltage:
220V
Handle Dimension:
Φ32*170
Generator Dimension:
155*265*170mm
Replacement Blade:
25pcs
Highlight:

40Khz Ultrasound Cutter

,

Smooth Edge Ultrasonic Cutter

,

Analog Generator Ultrasonic Cutter

Product Description

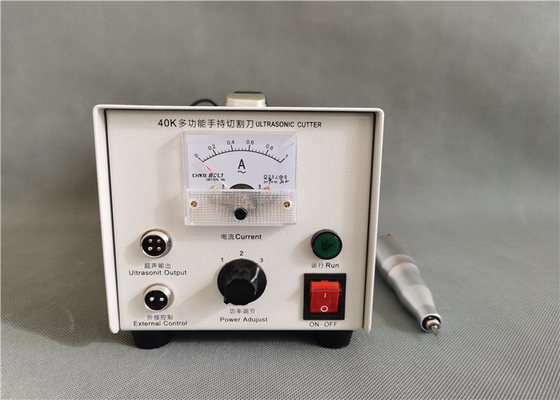

40Khz Ultrasound Cutter with Smooth Cutting Edge Special Fabric Cutting Blade





Description:



The 40Khz ultrasonic cutter replaces the sharp-edged knives in traditional cutters. The pressure of traditional cutting knives is concentrated at the cutting edge, and the pressure is very large, which exceeds the shear strength of the material to be cut, and the molecular bonds of the material are pulled apart and cut off. Since the material is pulled apart by strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself must bear a relatively large pressure. The cutting effect is not good for soft and elastic materials, and it is more difficult for sticky materials.
Ultrasonic cutting knives do not need a sharp edge, nor do they need a lot of pressure, and will not cause damage to the fabric. At the same time, due to the ultrasonic vibration of the cutting blade, the frictional resistance is very small, and the material to be cut is not easy to stick to the blade.





Specifications:



Item No QR-C40A
Power 100W
Generator Analog generator
Frequency 40KHZ
Voltage 220V or 110V
Handle Dimension Φ32*170
Generator Dimension 155*265*170mm
Gross weight 5Kg
Replacement blade 25pcs





Advantage:



1. Cutting the fabric with no scattered side, no hardening, smooth and beautiful

2. Can be hand-held or installed on machines and lines, easy operation

3. Power adjustable, can connect with the client’s control system

4. Safe separation and sealing of the workpiece during operation

5. Beautiful and closed cutting edge

6. Special fabric cutting blade, cutting high quality, easy to replace

7. Completely replace the resistance heat knife cutting process, energy saving and environmental protection





40Khz Ultrasound Cutter with Smooth Cutting Edge Special Fabric Cutting Blade
