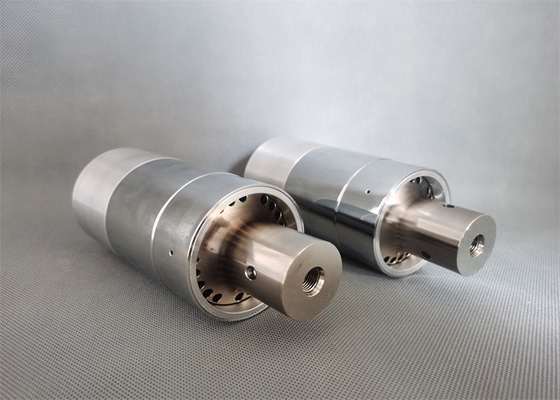

3300w Replacement Branson CR20 Ultrasonic Converter For Metal Welder

Ultrasonic 3300w Ultra Replacement Branson CR20 Converter for Metal Welder

Description:

Branson CR20 replacement converters are all new, not recovered from scrapped units. It is made according to the orginal CR20 converter which is suitable for Branson power supply. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part. The entire process is conducted in a ISO registered facility. Best of all, since the manufacturing process is so carefully controlled, durability is assured.

Specifications:

Specification:

Special Items can be customized.

Advantages of ultrasonic welding:

One of the most important advantages of ultrasonic welding is the lower temperature. The generation of temperature is unavoidable, it is only generated by friction, and is only equivalent to 1/3 or 1/2 of the melting point of the metal. At the low temperature produced by the welding process, the metal wire retains its original properties due to annealing and the low temperature does not destroy the insulation of the wire; in addition, the lower temperature also means that very thin metals can be welded to thick metals , without causing damage to the thin metal. These are very important in the production of wire harnesses.
Most of the metals used in electrical products have good thermal conductivity, making it difficult to weld them by melting. Because the heat is quickly dissipated from the metal surface, it is necessary to apply more heat to complete the welding. Ultrasonic welding does not encounter these problems. In fact, since no melting occurs, ultrasonic welding can only use 1/30 the energy of resistance welding. In other words, an ultrasonic welder with a power of 3KW can complete the work that resistance welding requires 90KVA to complete, so the cost in the work is also obvious.
Ultrasonic welding is a mechanical process, no current flows through the workpiece, so the conductivity of the metal has no effect. The metal surface is generally attached with contaminants and oxide layers. Using ultrasonic welding, there is no need to pre-treat the metal surface. Ultrasonic vibration can directly shatter the attachments and remove them. Another important advantage of ultrasonic welding is the long life of the workpiece. The welding head of the ultrasonic wire harness machine has 4 working surfaces, which reduces the maintenance cost of the equipment in the later stage.

Ultrasonic 3300w Ultra Replacement Branson CR20 Converter for Metal Welder
