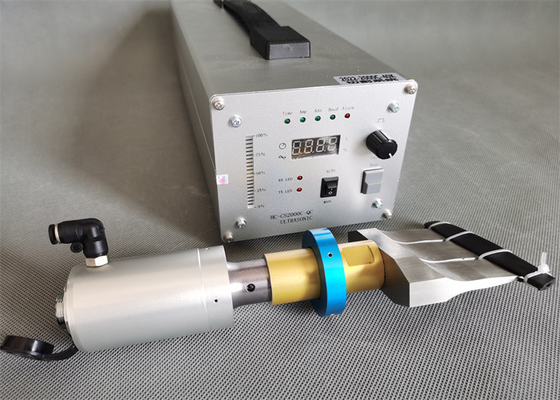

40Khz High Frequency Ultrasound Blade For Cutting Car Tires Rubber Materials

MOQ:	1 unit
Price:	Negotation
Standard Packaging:	packed in carton box
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-FC40H

Products Name:

Ultrasonic Rubber Cutter

Frequency:

40KHZ

Power:

Generator:

Digital Power Supply

Voltage:

220V Or 110V

Cutter Dimension:

82.5mm

Weight Of Blade:

1.5kgs

Gross Weight:

Highlight:

40Khz High Frequency Ultrasound Blade

Rubber Materials Ultrasonic Blade

Car Tires Ultrasonic Blade

Product Description

40Khz High Frequency Ultrasound Blade for Cutting Car Tires Rubber Materials

Description:

The 40Khz ultrasonic rubber cutter is mainly used in the cutting of rubber materials such as automobile tires. The rubber cutting knives produced by QRsonic are mainly exported to Southeast Asian countries, providing a convenient and quick tool for rubber cutting.

40Khz Rubber Ultrasonic Cutting Machine is a kind of equipment that uses ultrasonic energy for cutting processing, replacing the traditional rubber cutting technology. Rubber ultrasonic cutting machine is a special application of ultrasonic cutting machine. It is a kind of equipment that uses ultrasonic energy for cutting. Its biggest feature is that cutting does not use a blade.

Specifications:

Item No	QR-FC40H
Power	800W
Generator	Digital Power Supply
Frequency	40KHZ
Voltage	220V or 110V
Cutter Dimension	82.5mm
Weight of blade	1.5kgs
Gross weight	8Kgs

Comparison between Traditional Cutter and Ultrasonic Cutter:

Traditional Cutter	Ultrasonic Cutter
A sharp-edged tool that presses against the material being cut.	The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut.
The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut.	Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force
The cutting tool has a sharp edge and the material itself is subject to relatively high pressure.	High stability, environmental protection and no pollution
It is not good for soft and elastic materials, and it is more difficult for viscous materials.	The biggest feature is that there is no traditional cutting edge.

Advantages of ultrasonic tire rubber cutting:

1. High cutting precision, no deformation of rubber compound

2. Good surface finish and good bonding performance

3. Easy to apply to automated production

4. Fast, efficient, no pollution

40Khz High Frequency Ultrasound Blade for Cutting Car Tires Rubber Materials
