Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W35H |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Cylinder Welder | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 800w | Generator: | Digital Power Supply |
| Welding Head: | Titanium | Application: | Various Plastic Materials |
| High Light: | Digital Power Driver Ultrasonic Welder,Ultrasonic Cylinder Spot Welder,Ultrasonic Spot Welder Cylinder Type |
||

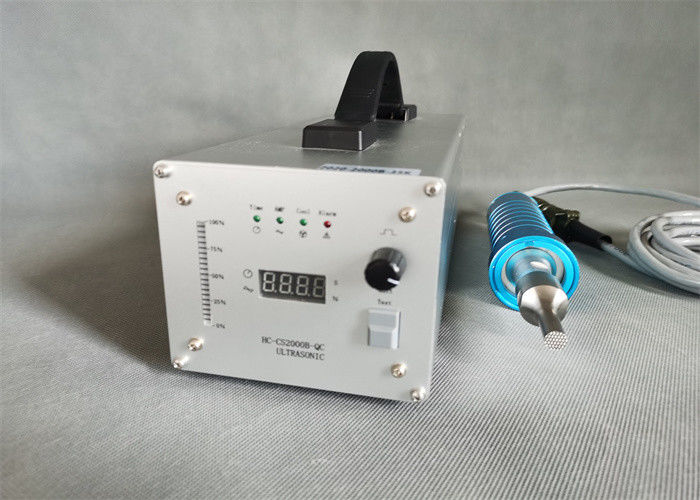

35Khz Ultrasonic Cylinder Type Spot Welder with Digital Power Driver
Description:
The 35Khz ultrasonic straight-shank welding equipment converts the high-voltage high-frequency signal generated by the generator into high-frequency mechanical vibration through the transducer system, which is applied to the workpiece of the plastic product and transmitted to the workpiece through friction with the plastic product.
35K ultrasonic welding is a fast, clean and efficient assembly process. A method of assembling and processing thermoplastic fittings and some composite parts.
Specifications:
| Item No | QR-W35H |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| welding head |
Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type | ||||||
|
Frequency |
35 | 28 | 28 | 28 | 20 | 28 | 35 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — | ||||
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC |
PC, |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding | |||||||
Advantage:
1. Fast, economical, efficient and environmentally friendly welding process, especially in the operation of thermoplastic parts and the synthesis of other workpieces, which highlights the characteristics of work efficiency. At present, the principle of ultrasonic welding machine is widely used in plastic products and plastic materials. The synthesis operation of metal parts and metal materials, as well as some other materials and industries, process operations, etc.
2. It surpasses the old-fashioned solvent welding operation, flux welding, adhesive bonding and other flux and flux fusion synthesis process technologies. It not only has the advantage of saving, but also has no operation pollution because of the advanced ultrasonic principle technology, so it is very environmentally friendly. The welding effect is comparable to the material itself, the welding quality is solid, the appearance of the welding operation is beautiful, and the sealing effect of the welding operation is incomparable with the old technology.
Do not add any adhesives, fillers or solvents, and do not consume a lot of heat. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency.
35Khz Ultrasonic Cylinder Type Spot Welder with Digital Power Driver
