800w Ultrasonic Spot Welder With 10mm Titanium Welding Horn Tip 35Khz

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W35H
Products Name:
Ultrasonic Pen Welder
Frequency:
35Khz
Power:
800w
Generator:
Digital Power Supply
Welding Head:
8mm Or 10mm Titanium Tip
Application:
Various Plastic Materials Welding
Highlight:

800w Ultrasonic Spot Welder

,

Hand Hold Ultrasonic Spot Welder

,

Titanium Horn Tip Ultrasonic Welder

Product Description

35Khz 800w Ultrasonic Hand Hold Spot Welder with 10mm Titanium Welding Horn Tip



Description:

28Khz ultrasonic handheld spot welding equipment is used in plastic products, especially suitable for welding HDPE, PP, PE, ABS, PVC, PC, EVA, PMMA, PS, PBT, PETG and other plastics, fully digital circuit control, using advanced DSP control system , Strong anti-interference ability, ergonomic design, easy to control and use, easy to operate.



Specifications:



Item No QR-W35H
Power 800W
Generator Digital generator
Frequency 35KHZ
Voltage 220V or 110V
welding head Titanium
Gross weight 6Kg




Parameters:


Classification Pistol Type Pen Type

Frequency
(Khz)

 35 28 28 28 20 28 35 28
Power(w) 500 300 700 800 900 300 800 800
Welding Head <10mm <10mm <10mm <12mm <12mm <10mm <10mm <12mm
Dia of shell 51mm 51mm 51mm 64mm 64mm 40mm 45mm 60mm
The handles size 100mm*45mm*32mm — — —
Weight 0.5kg 0.5kg 0.5kg 1.2kg 1.2kg 0.4kg 0.5kg 1.0kg
Digital Generator ● - ● ● ● ● - ●
Analog Generator ● ● ● ● ● ● ● ●
Application ABS, HIPS,PMMA,MPPO PVC,PP,PE Aldehyde-resin, PC PC,PSU,PA Nylon, PE,PBT PVC,PP,PE Aldehyde-resin, PC

PC,
PSU,PA
Welding Type Rivet Welding, Spot Welding, Embossed Welding




Advantages:



1. High stability: The digital electric box automatically tracks the resonant frequency, adjusts the output frequency and matches the handheld device. Once the fault is found and the operation alarm is stopped, most of the ultrasonic welding can be completed in 0.1-0.5 seconds.

2. Energy saving and environmental protection: no damage to the welding surface, no deformation, no scratches and glue residue, no need for a large number of fixtures, fluxes, adhesives, reducing labor costs

3. Reliable quality: ultrasonic welding solidification molding, recombination between molecules, forming a strong molecular chain, the weld strength can be close to the strength of raw materials, air tightness, airtight, airtight

4. Simple operation: Ultrasonic welding is very easy to automate. As long as the welding parameters are set, welding can be carried out without preheating or cleaning.

5. Wide application range: Handheld ultrasonic spot welding gun can be used for welding of film, cloth and thermoplastic products, riveting, spot welding and inlaying and blanking process between metal parts and plastic parts.

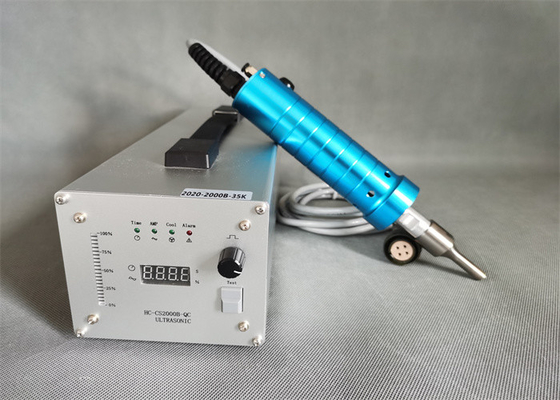

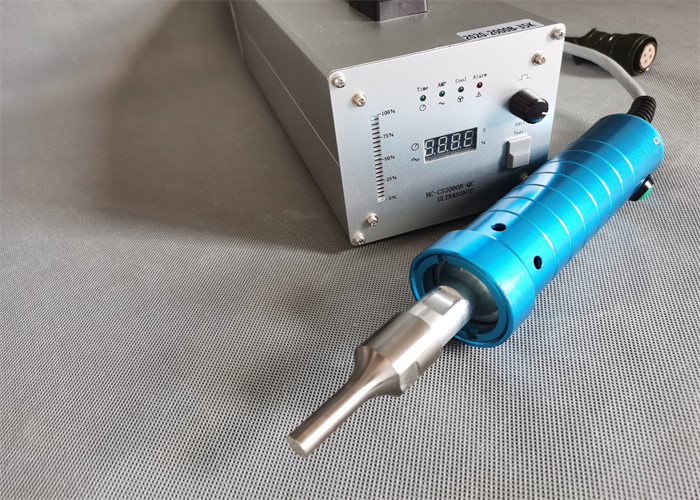

35Khz 800w Ultrasonic Hand Hold Spot Welder with 10mm Titanium Welding Horn Tip

800w Ultrasonic Spot Welder With 10mm Titanium Welding Horn Tip 35Khz 0

Tags:

hand held ultrasonic plastic welding machine,

handheld ultrasonic plastic welder,

hand held ultrasonic plastic welder
