| Products Name: | Ultrasonic Food Cutter | Frequency: | 40KHZ |
|---|---|---|---|
| Power: | 800W | Generator: | Digital Power Supply |
| Voltage: | 220V Or 110V | Cutter Dimension: | 82.5mm |
| Weight Of Blade: | 1.5kgs | Gross Weight: | 8kgs |
| Highlight: | Ultrasonic Cakes Food Cutter,Handhold 40Khz Ultrasonic Cutting Machine,High Viscosity Dessert Ultrasonic Cutting Machine |
||

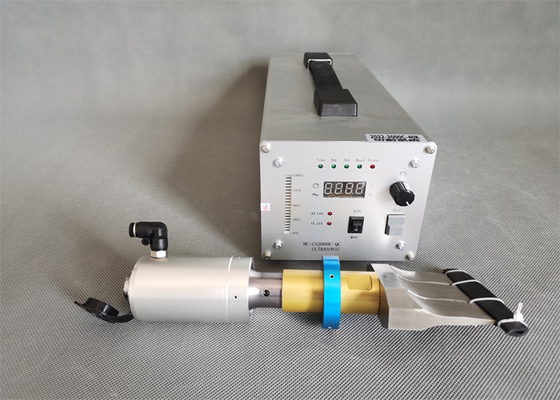

Handhold 40Khz Ultrasonic Cakes Food Cutter for High Viscosity Dessert and Candies
Description:
40Khz Ultrasonic cakes/food cutters are often used to cut the most common desserts and candies, whether it is soft or contain fat, sugar, honey, cream or chocolate, which does not affect the uniformity of the food in any way. Ultrasonic cutters ensure clean cutting and precision. Compared with traditional cutting machines, ultrasonic food cutting knives are characterized by more hygienic cutting, shorter downtime, higher cost-effectiveness, higher consistency of cutting surfaces and longer blade life.
Specifications:
| Item No | QR-FC40H |
| Power | 800W |

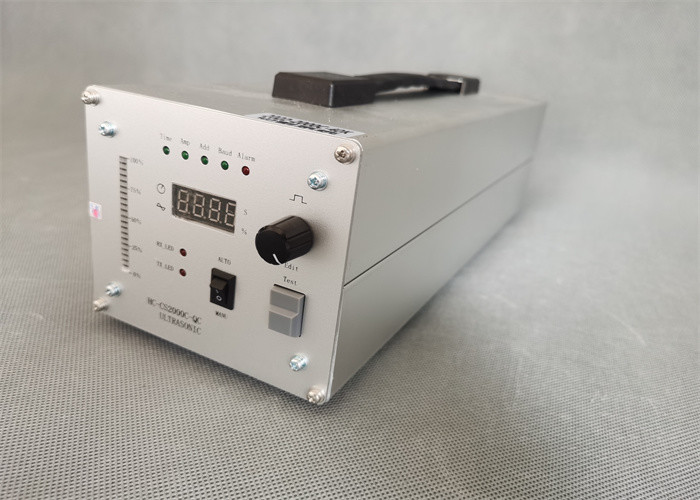

| Generator | Digital Power Supply |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Cutter Dimension | 82.5mm |
| Weight of blade | 1.5kgs |
| Gross weight | 8Kgs |
Comparison between Traditional Cutter and Ultrasonic Cutter:
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Advantages:
1. High stability: When the ultrasonic generator works, it generates electromagnetic vibration and is converted into mechanical oscillation and transmitted to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is required, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: The cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch can be cut to support the hand-held and machine-mounted cutting.
Wide range of applications: rubber, vulcanized latex, non-vulcanized latex, food and various textile materials, plastic sheets can be ultrasonically cut.
