| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W35H |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Spot Welder | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 800w | Generator: | Digital Power Supply |
| Welding Head: | Titanium | Application: | Various Plastic Materials |
| Highlight: | 35Khz Portable Welding Device,Ultrasound Spot Portable Welding Device,Titanium Ultrasonic Welding Device |
||

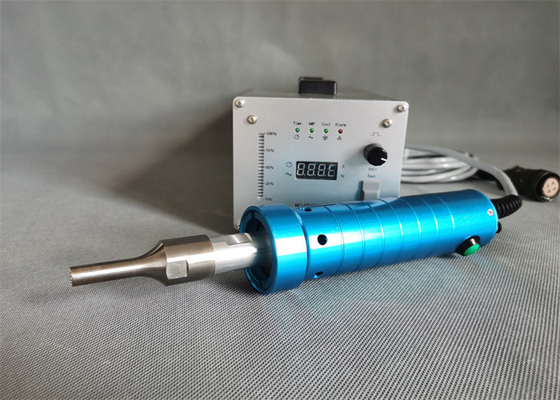

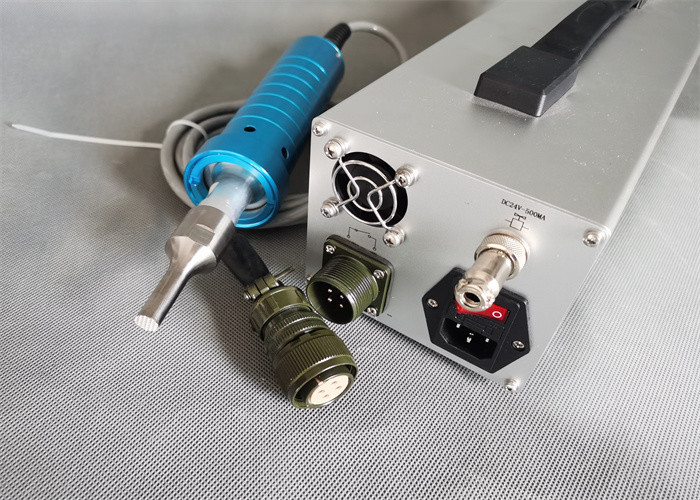

35Khz Ultrasound Spot Portable Welding Device with Time Mode Control System
Description:
Ultrasonic welding is a fast, clean and effective assembly process. Used to assemble methods for processing thermoplastic fittings and some composite components. It is currently used for bonding between plastic products, bonding of plastic products to metal parts and bonding between other non-plastic materials.
Ultrasonic non-woven fabric welding is a new generation of non-woven fabric processing and welding equipment with high efficiency, high quality and automation. Ultrasonic welding does not require the addition of any adhesive padding or deepening agent when welding non-woven fabrics, nor the use of heat sources. It has the advantages of simple operation, fast welding speed, good welding quality, environmental protection and safety.
Specifications:
| Item No | QR-W35H |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| welding head |
Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type | ||||||
|
Frequency |
35 | 28 | 28 | 28 | 20 | 28 | 35 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — | ||||
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC |
PC, |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding | |||||||
Application:
Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable. There will be differences.
1. Ultrasonic plastic welding machine is a welding equipment developed and designed by ultrasonic plastic welding equipment in the field of plastic welding. It is called ultrasonic plastic welding machine in the industry. Ultrasonic welding equipment is a high-tech technology for welding products. When welding plastic products, it does not add any adhesive, filler or solvent, nor consumes a large amount of heat source. It has simple operation, fast welding speed, high welding strength and stable production. Fast, and so on.
2, high frequency is the use of high-frequency electromagnetic field to make the internal molecules of the material collide with each other to produce high temperature to achieve welding and welding, and ultrasonic is the use of ultrasonic transducers to convert electrical energy into heat and through welding to achieve welding and welding purposes. The applications of high frequency and ultrasonic are very extensive.
