Ultrasonic Immersion Welding Soldering Tin Coating Technology Electronic Manufacturing Industry
  • name
  • name
  • name
  • name

Ultrasonic Immersion Welding Soldering Tin Coating Technology Electronic Manufacturing Industry

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSH-2020-GL
Name:
20Khz Ultrasonic Dip Soldering Equipment
Frequency:
20Khz
Power:
1000w
Input Voltage:
220V±10%，50/60Hz
Working Mode:
Intermittent Or Continuous Working
System Protection:
Tin, Indium, Silver, Copper, Nickel, Aluminum Wires.
Highlight:

20Khz Ultrasonic Dip Soldering Equipment

,

Ultrasonic Immersion Welding Soldering Tin Coating

,

Electronic Manufacturing Industry Ultrasonic Tin Coating

Product Description

Ultrasonic Immersion Weding Soldering Tin Coating Technology Electronic Manufacturing Industry





Description:



Ultrasonic immersion welding is a method of welding that utilizes ultrasonic technology and is commonly used in the immersion welding process in the electronic manufacturing industry.

The traditional immersion welding method involves immersing the welded component (such as electronic components or connectors) into a preheated solder bath, melting the solder and covering it on the solder pads of the welded component, forming a reliable welding connection. Ultrasonic immersion welding introduces ultrasonic vibration on the basis of traditional immersion welding.

The working principle of ultrasonic immersion welding is that during the welding process, through the action of ultrasonic vibration, the solder in the solder bath quickly wets the solder pads of the welded parts with a small and high-frequency vibration speed, improving the welding quality and reliability.





Parameters:

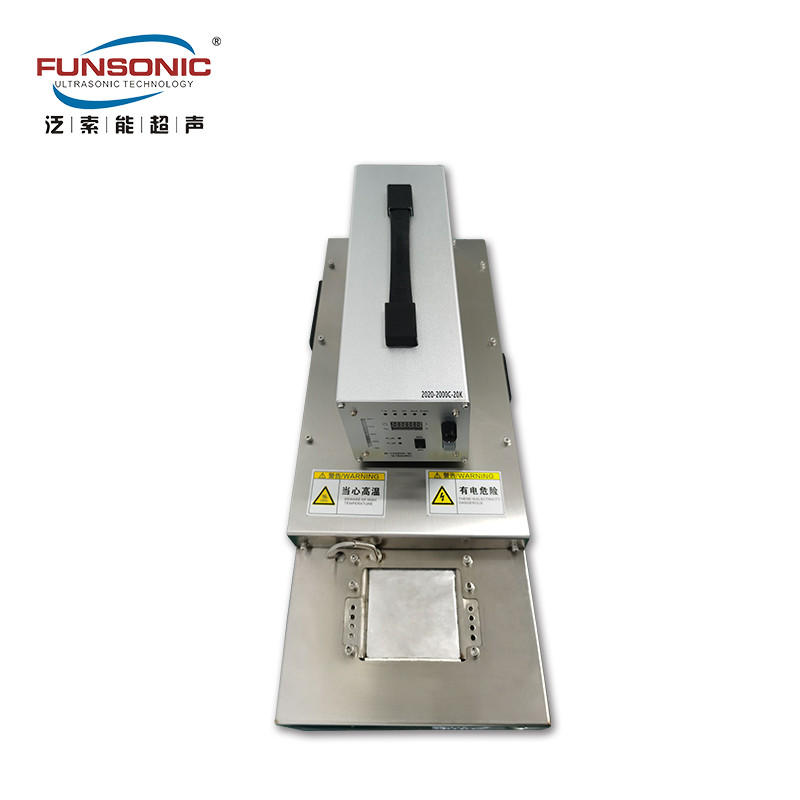

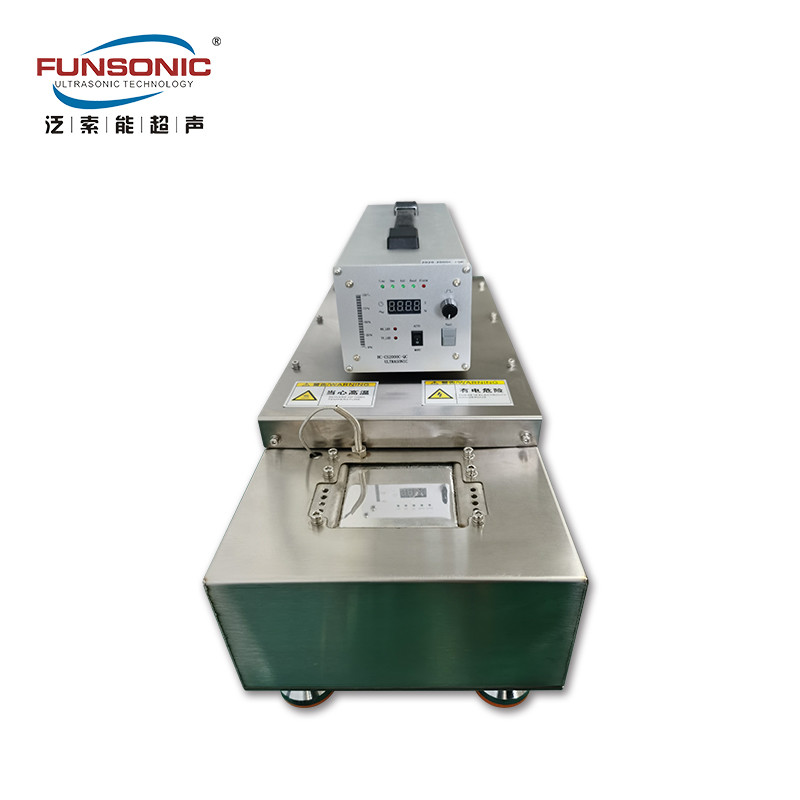

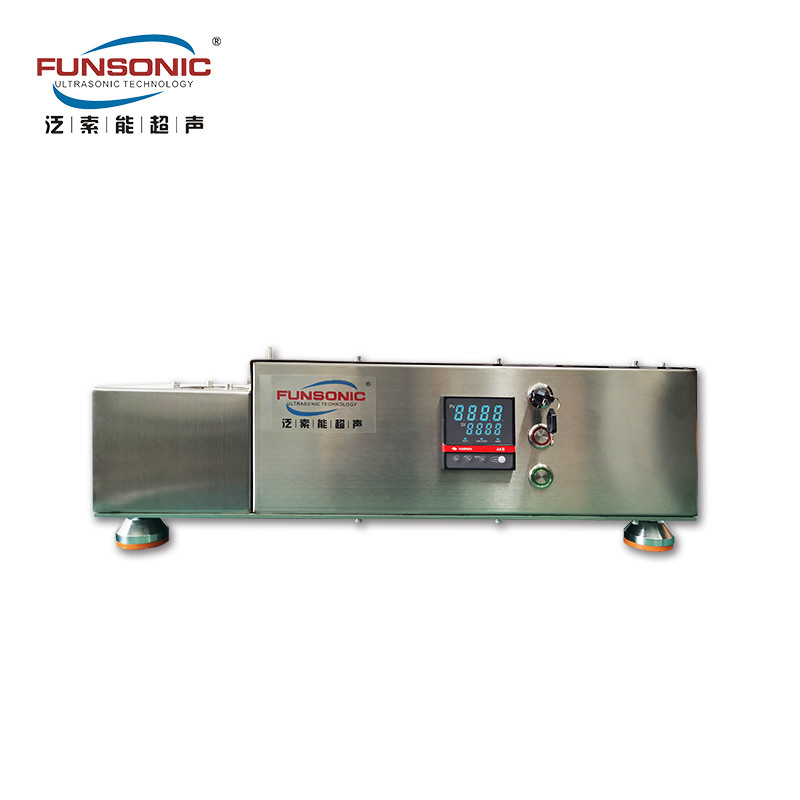

Model FST-2020-GL
Name

20Khz Ultrasonic Dip Soldering Equipment


Frequency 20Khz
Power 1000w
Input Voltage 220V±10%,50/60Hz
Working Mode Intermittent or Continuous working
Temperature Range 200 -400℃
Application Tin, Indium, Silver, Copper, Nickel, Aluminum Wires.





Advantages:

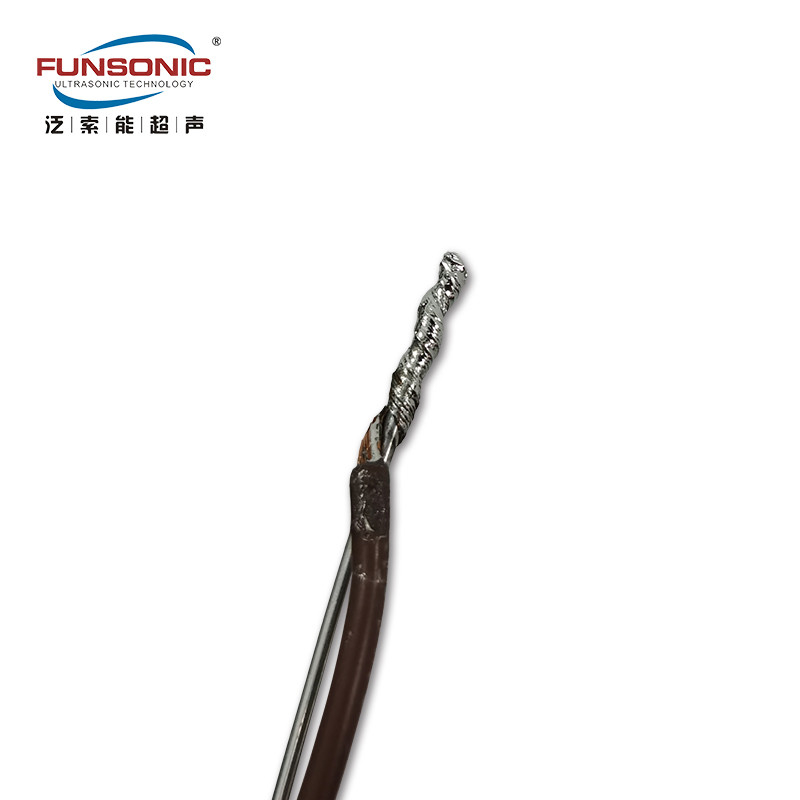

1. Improve wettability: Ultrasonic vibration can remove the oxide layer on the surface of solder, enhance the wettability between solder and solder components, and make it easier for solder to cover the solder pad.

2. Uniform coating: Ultrasonic vibration can enable solder to be coated on the welded part at a uniform speed and good fluidity, reducing the uneven distribution of solder and the generation of defects such as bubbles.

3. Reduce oxidation: Ultrasonic vibration can reduce the oxidation reaction between solder and welded parts, reduce oxidation losses during the welding process, and improve welding quality.





Ultrasonic Immersion Weding Soldering Tin Coating Technology Electronic Manufacturing Industry



Ultrasonic Immersion Welding Soldering Tin Coating Technology Electronic Manufacturing Industry 0Ultrasonic Immersion Welding Soldering Tin Coating Technology Electronic Manufacturing Industry 1
