Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2808-PL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | 28Khz Ultrasonic Flat Indium Coating | Frquency: | 28Khz（30/20Khz For Optional) |
|---|---|---|---|
| Max Power: | 800W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-20μm | Input Voltage: | 220V± 10%，50/60Hz，4A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| High Light: | 28Khz Ultrasonic Indium Coating,Handheld Ultrasonic Indium Coating,Flat Ultrasonic Indium Coating |
||

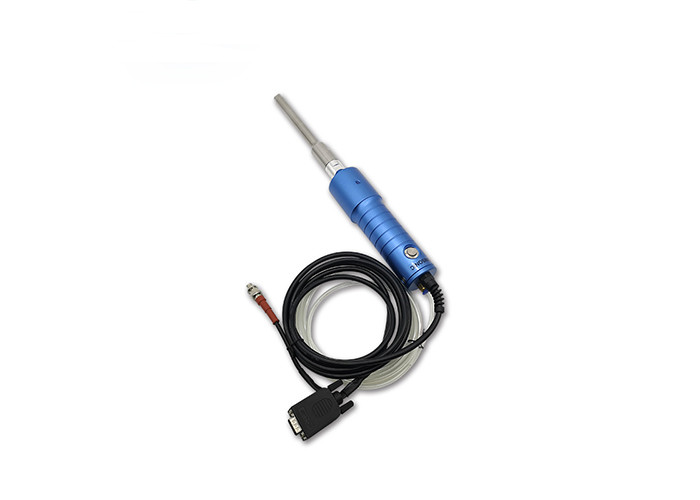

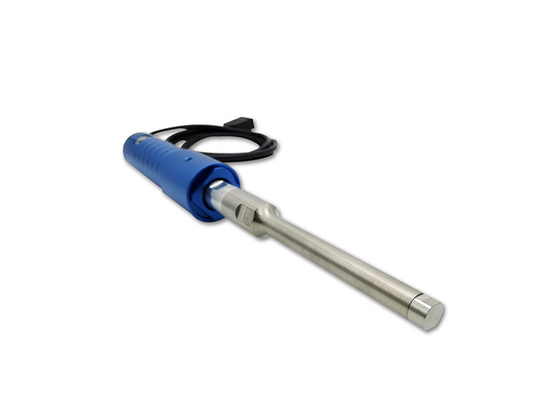

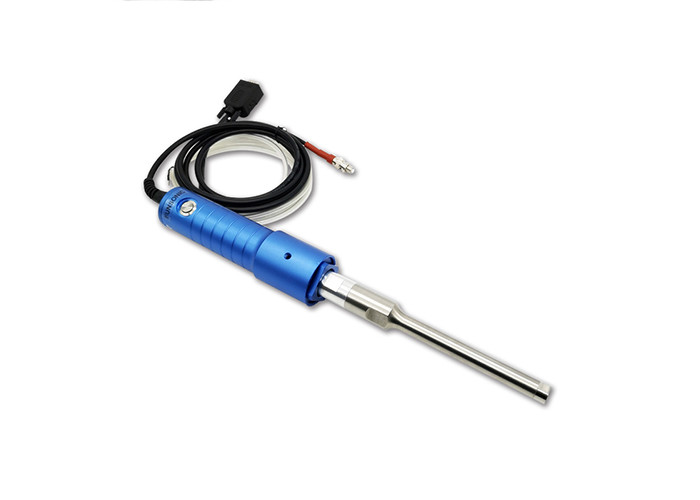

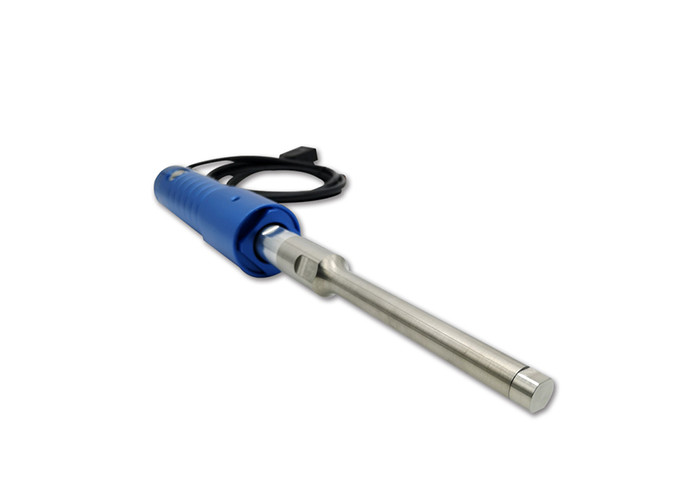

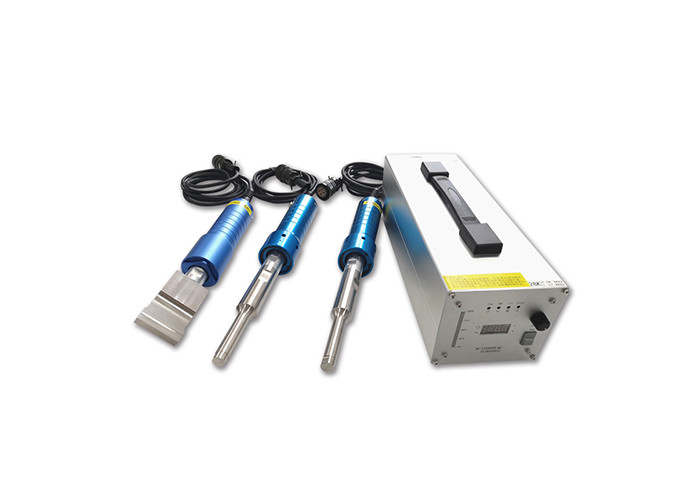

28Khz Ultrasonic Handheld Flat Indium Coating Equipment with Various Horn for Optional
Description:
When operating the ultrasonic indium coating machine, the coating solution is placed in the coating tank and supplied through the coating solution supply system. The ultrasonic vibration generated by the ultrasonic vibrator is transmitted to the coating liquid through the coating groove, causing small eddies and vibrations in the liquid. The indium material in the coating solution will form droplets under the action of ultrasonic vibration and spray uniformly onto the target surface, thereby achieving the coating of indium material.
Ultrasonic indium coating machines have efficient, uniform, and controllable coating capabilities, and are widely used in the coating needs of electronics, optics, medical and other fields. By adjusting the parameters of ultrasonic vibration and the characteristics of the coating solution, different materials and surfaces can be coated and specific coating requirements can be met.
Parameters:
| Model | FSY-2808-PL |
| Name | 28Khz Ultrasonic Flat Indium Coating |
| Frequency | 28Khz(30/20Khz for optional) |
| Power | 800w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-20μm |
| Input Voltage | 220V±10%,50/60Hz, 4A |
| Working Mode | Intermittent/Continuous Switchable |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
Advantages:
1. Uniformity: The ultrasonic indium coating machine can achieve a highly uniform coating effect. Ultrasonic vibration and eddy current effects can ensure the uniform dispersion of indium materials in the coating solution and the uniform coating on the target surface, thereby obtaining consistent and high-quality coatings.
2. Efficiency: The ultrasonic indium coating machine has a fast coating speed and efficient coating performance. Ultrasonic vibration can promote the formation and adhesion of droplets in the coating solution, achieving a fast and efficient coating process.
3. Wide applicability: Ultrasonic indium coating machine can be used for different types of materials and surface coatings. It is suitable for coating various materials such as metals, ceramics, plastics, etc., and can be applied in multiple fields such as electronics, optics, and medicine.
4. Easy to operate and control: Ultrasonic indium coating machines usually have a simple and easy-to-use operating interface and control system. Operators can easily adjust coating parameters, such as vibration frequency, coating speed, and coating thickness, to meet different coating requirements.
28Khz Ultrasonic Handheld Flat Indium Coating Equipment with Various Horn for Optional
